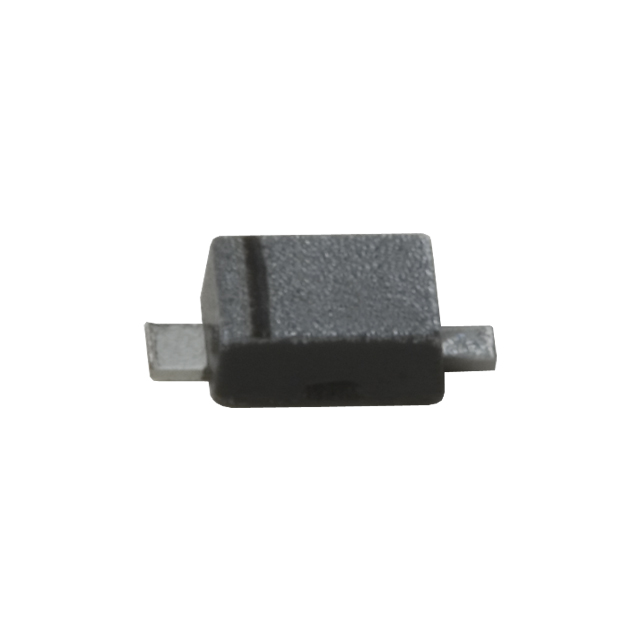

Specification	UNHZ20200L

Current Rating	1 A
DC Cold Resistance	0.059 Ohms
Fuse Type	Board Mount (Cartridge Style Excluded)
Mounting Type	Surface Mount
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	Flat Lead, 2-SMD
Response Time	Fast Blow
Size / Dimension Height	0.028 in
Size / Dimension Length	0.067 in
Size / Dimension Width	0.049 in
Voltage Rating - AC	50 VAC
Voltage Rating - DC	50 V

UNHZ20 Series

Part	DC Cold Resistance	Voltage Rating - DC	Current Rating	Fuse Type	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Package / Case	Voltage Rating - AC	Response Time
Panasonic Electronic Components UNHZ20200L	0.059 Ohms	50 V	1 A	Board Mount (Cartridge Style Excluded)	Surface Mount	125 °C	-55 °C	0.028 in	0.049 in	0.067 in	2-SMD Flat Lead	50 VAC	Fast Blow
Panasonic Electronic Components UNHZ20100L	0.093 Ohms	50 V	700 mA	Board Mount (Cartridge Style Excluded)	Surface Mount	125 °C	-55 °C	0.028 in	0.049 in	0.067 in	2-SMD Flat Lead	50 VAC	Fast Blow
