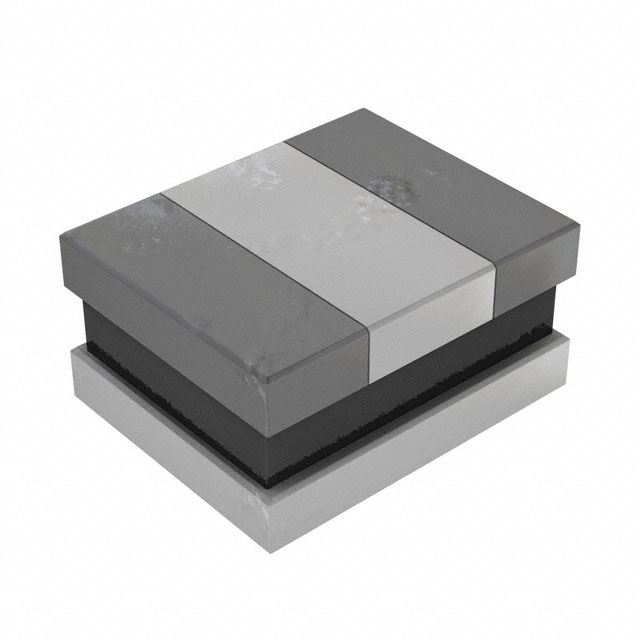

SRN2510-1R0M

Active

Bourns Inc.

POWER INDUCTOR (SMD), 1 ΜH, 2.2 A, SEMISHIELDED, 2.7 A, SRN2510 SERIES

Search across all available documentation for this part.

Active

Bourns Inc.

POWER INDUCTOR (SMD), 1 ΜH, 2.2 A, SEMISHIELDED, 2.7 A, SRN2510 SERIES

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Material - Core	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Shielding	Inductance	Type	Tolerance	Mounting Type	Q @ Freq	Frequency - Self Resonant	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Current - Saturation (Isat)	Supplier Device Package	Supplier Device Package	DC Resistance (DCR)
Bourns Inc. SRN2510-2R2M	1.5 A	0.04 "	1.02 mm	Ferrite	0.098 "	2 mm	2.5 mm	0.079 in	Shielded	2.2 µH	Drum Core Wirewound	20 %	Surface Mount	1 MHz 11	80 MHz	1008	-55 °C	125 °C	1 MHz	169 mOhm	1.9 A	2520	1008
Bourns Inc. SRN2510-1R0M	2.2 A	0.04 "	1.02 mm	Ferrite	0.098 "	2 mm	2.5 mm	0.079 in	Shielded	1 µH	Drum Core Wirewound	20 %	Surface Mount	1 MHz 10	140 MHz	1008	-55 °C	125 °C	1 MHz	80 mOhm	2.7 A	2520	1008
Bourns Inc. SRN2510-R24M	3.1 A	0.04 "	1.02 mm	Ferrite	0.098 "	2 mm	2.5 mm	0.079 in	Shielded	240 nH	Drum Core Wirewound	20 %	Surface Mount		210 MHz	1008	-55 °C	125 °C	1 MHz		4.3 A	2520	1008	42 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 µH Shielded Drum Core, Wirewound Inductor 2.2 A 80mOhm Max 1008 (2520 Metric)
