04020VA-05Q-AL-00

Active

NMB TECHNOLOGIES

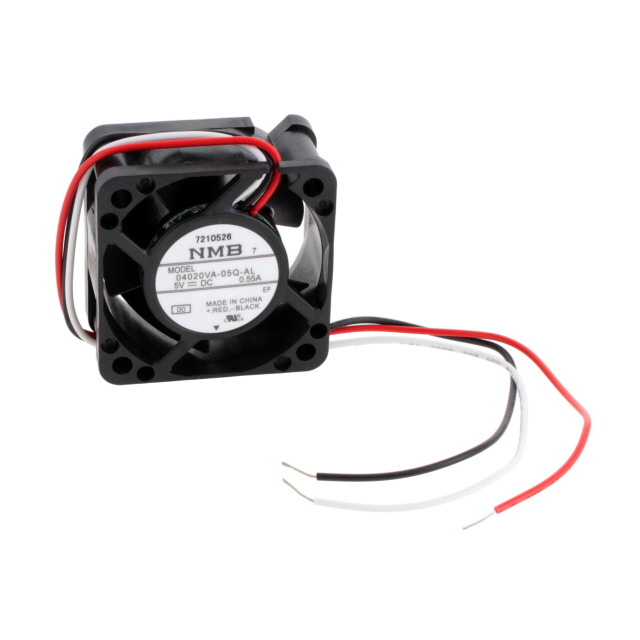

FAN AXIAL 40X20MM BALL 5VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

04020VA-05Q-AL-00

Active

NMB TECHNOLOGIES

FAN AXIAL 40X20MM BALL 5VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 7.79

Description

General part information

04020VA Series

Fan Tubeaxial 5VDC Square - 40mm L x 40mm H Ball 3 Wire Leads

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	04020VA-05Q-AL-00	04020VA Series

Air Flow	-	0.347 m³/min
Air Flow	-	12.4 CFM
Bearing Type	Ball	Ball
Current Rating (Amps)	-	0.09 A
Fan Type	Tubeaxial	Tubeaxial
Features	Locked Rotor Sensor, Auto Restart	Auto Restart, Speed Sensor (Tach), Locked Rotor Sensor
Ingress Protection	-	IP69K - Dust Tight, High Temp Water Jets, Waterproof
Lifetime @ Temp.	-	40000 - 100000 Hrs
Material - Blade	-	Plastic
Material - Frame	-	Plastic
Noise	-	42 dB
Operating Temperature	-	70 °C
Operating Temperature	-	70 °C
Operating Temperature	-	-10 °C
Operating Temperature	-	-10 °C
Power (Watts)	-	1.56 - 2.16 W
RPM	-	11000 RPM
Size / Dimension	Square	Square
Size / Dimension [x]	40 mm	40 mm
Size / Dimension [z]	40 mm	40 mm
Static Pressure	-	142 Pa
Static Pressure	-	0.57 in H2O
Termination	3 Wire Leads	2 Wire Leads, 3 Wire Leads
Voltage - Rated	5 V	5 - 24 VDC
Voltage Range	-	13.2 - 26.4 VDC
Voltage Range	-	7 - 14 V
Weight	-	39.92 g
Weight	-	0.088 lb
Width [y]	20 mm	20 mm

04020VA Series

DC AXIAL FAN, 24 V, SQUARE, 40 MM, 20 MM, BALL BEARING

Part	Fan Type	Voltage - Rated	Features	Termination	Width [y]	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Bearing Type	Material - Frame	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Blade	Lifetime @ Temp.	Weight	Weight	Voltage Range [Max]	Voltage Range [Min]
NMB TECHNOLOGIES 04020VA-24K-AA-00	Tubeaxial	24 VDC	Auto Restart	2 Wire Leads	20 mm	40 mm	Square	40 mm	Ball
NMB TECHNOLOGIES 04020VA-05Q-AT-00	Tubeaxial	5 V	Auto Restart, Speed Sensor (Tach)	3 Wire Leads	20 mm	40 mm	Square	40 mm	Ball	Plastic	70 °C	70 °C	-10 °C	-10 °C	Plastic	40000 Hrs
NMB TECHNOLOGIES 04020VA-24L-AT-00	Tubeaxial	24 VDC	Auto Restart, Speed Sensor (Tach)	3 Wire Leads	20 mm	40 mm	Square	40 mm	Ball	Plastic	70 °C	70 °C	-10 °C	-10 °C	Plastic	40000 Hrs
NMB TECHNOLOGIES 04020VA-05Q-AL-00	Tubeaxial	5 V	Auto Restart, Locked Rotor Sensor	3 Wire Leads	20 mm	40 mm	Square	40 mm	Ball
NMB TECHNOLOGIES 04020VA-05Q-AA-00	Tubeaxial	5 V	Auto Restart	2 Wire Leads	20 mm	40 mm	Square	40 mm	Ball
NMB TECHNOLOGIES 04020VA-24L-AA-00	Tubeaxial	24 VDC	Auto Restart	2 Wire Leads	20 mm	40 mm	Square	40 mm	Ball	Plastic	70 °C	70 °C	-10 °C	-10 °C	Plastic	40000 Hrs
NMB TECHNOLOGIES 04020VA-12K-AA-00	Tubeaxial	12 VDC		2 Wire Leads	20 mm	40 mm	Square	40 mm	Ball	Plastic	70 °C	70 °C	-10 °C	-10 °C	Plastic	40000 Hrs	39.92 g	0.088 lb	13.2 VDC	7 V
NMB TECHNOLOGIES 04020VA-12L-AT-00	Tubeaxial	12 VDC	Auto Restart, Speed Sensor (Tach)	3 Wire Leads	20 mm	40 mm	Square	40 mm	Ball	Plastic	70 °C	70 °C	-10 °C	-10 °C	Plastic	40000 Hrs
NMB TECHNOLOGIES 04020VA-12K-AT-00	Tubeaxial	12 VDC	Auto Restart, Speed Sensor (Tach)	3 Wire Leads	20 mm	40 mm	Square	40 mm	Ball	Plastic	70 °C	70 °C	-10 °C	-10 °C	Plastic	40000 Hrs
NMB TECHNOLOGIES 04020VA-24K-AL-00	Tubeaxial	24 VDC	Auto Restart, Locked Rotor Sensor	3 Wire Leads	20 mm	40 mm	Square	40 mm	Ball	Plastic	70 °C	70 °C	-10 °C	-10 °C	Plastic	40000 Hrs
