9359-0 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish	Socket Depth	Accepts Pin Diameter (Min)	Accepts Pin Diameter (Max)	Contact Finish Thickness	Contact Material	Length - Overall	Mounting Hole Diameter	Termination	Pin Hole Diameter	Tail Type	Flange Diameter
Mill-Max Manufacturing Corp. 9359-0-15-01-34-27-10-0	125 °C	-55 °C	Gold	0.16 in	0.032 in	0.046 in	30 µin	Beryllium Copper	0.16 in	0.09 in	Knurled Press-Fit	0.064 in	No Tail	0.11 in
Mill-Max Manufacturing Corp. 9359-0-15-15-34-27-10-0	125 °C	-55 °C	Gold	0.16 in	0.032 in	0.046 in	30 µin	Beryllium Copper	0.16 in	0.09 in	Knurled Press-Fit	0.064 in	No Tail	0.11 in

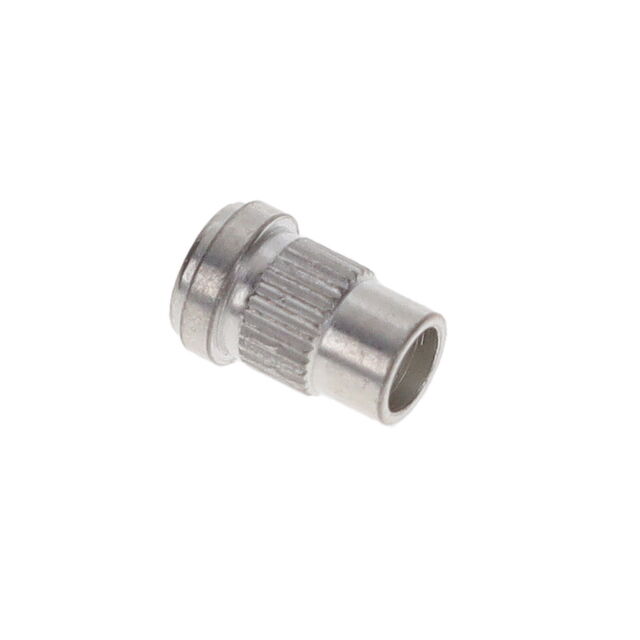

Mill-Max Manufacturing Corp. 9359-0-15-80-34-80-10-0	125 °C	-55 °C	Tin	0.16 in	0.032 in	0.046 in	200 µin	Beryllium Copper	0.16 in	0.09 in	Knurled Press-Fit	0.064 in	No Tail	0.11 in
