M50-9020542

Active

Harwin Inc.

CABLE ASSY, IDC PLUG-RCPT, 10WAY, 300MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

CABLE ASSY, IDC PLUG-RCPT, 10WAY, 300MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Shielding	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Length [x]	Number of Positions	Pitch - Cable [x]	Pitch - Cable	Cable Termination	Connector Type	Contact Finish
Harwin Inc. M50-9021342	2	Unshielded	0.05 in	1.27 mm	0.984 '	11.81 "	300 mm	26	0.025 in	0.64 mm	IDC	Socket to Plug	Gold
Harwin Inc. M50-9022542	2	Unshielded	0.05 in	1.27 mm	0.984 '	11.81 "	300 mm	50	0.025 in	0.64 mm	IDC	Socket to Plug	Gold
Harwin Inc. M50-9021042	2	Unshielded	0.05 in	1.27 mm	0.984 '	11.81 "	300 mm	20	0.025 in	0.64 mm	IDC	Socket to Plug	Gold
Harwin Inc. M50-9020542	2	Unshielded	0.05 in	1.27 mm	0.984 '	11.81 "	300 mm	10	0.025 in	0.64 mm	IDC	Socket to Plug	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

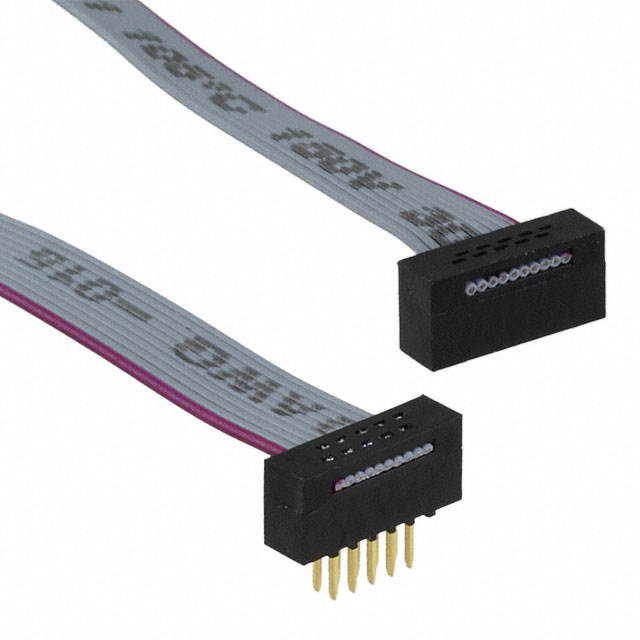

10 Position Cable Assembly Rectangular Socket to Plug 0.984' (300.00mm, 11.81")
