6380-2PG-318

Active

Conxall/Switchcraft

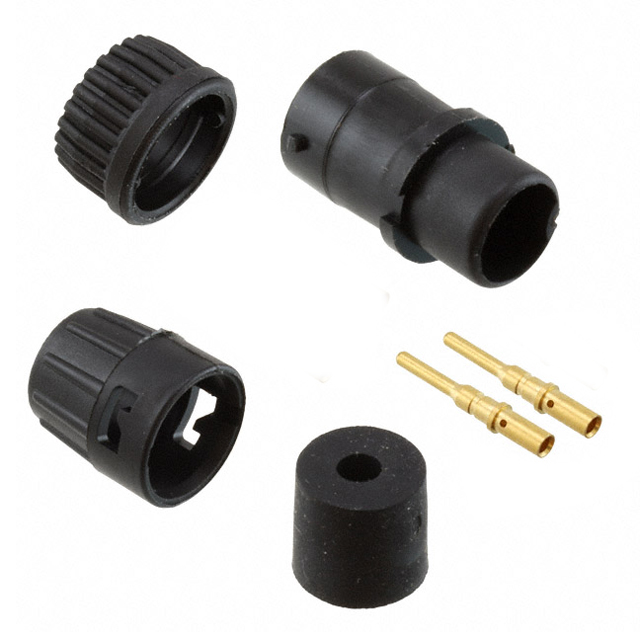

CONN PLUG MALE 2POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6380-2PG-318

Active

Conxall/Switchcraft

CONN PLUG MALE 2POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.76
		10	$ 5.21
		25	$ 4.92
		50	$ 4.80
		100	$ 4.56
		300	$ 4.22

Description

General part information

6380-2PG Series

2 Position Circular Connector Plug, Male Pins Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6380-2PG-318	6380-2PG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	0.13 - 0.17 in
Cable Opening	-	3.3 - 4.32 mm
Cable Opening	-	2.29 mm
Cable Opening	-	0.09 - 0.14 in
Cable Opening	-	3.56 mm
Cable Opening [Max] [custom]	0.2 in	0.18 - 0.2 in
Cable Opening [Max] [custom]	5.08 mm	4.57 - 5.08 mm
Cable Opening [Min] [custom]	4.57 mm	4.06 - 4.57 mm
Cable Opening [Min] [custom]	0.18 in	0.16 - 0.18 in
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	2	2
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

6380-2PG Series

CONN PLUG MALE 2POS GOLD CRIMP

Part	Shielding	Contact Material	Current Rating (Amps)	Backshell Material, Plating	Voltage Rating	Color	Fastening Type	Mounting Type	Connector Type	Termination	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Features	Number of Positions	Orientation	Applications	Primary Material	Ingress Protection	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
Conxall/Switchcraft 6380-2PG-516	Unshielded	Brass	Varies by Wire Gauge	Nylon, Polyamide (PA)	600 V	Black	Bayonet Lock	Free Hanging (In-Line)	Male Pins, Plug	Crimp	0.16 in	0.18 in	4.06 mm	4.57 mm	Gold	-40 °C	115 °C	Backshell	2	Keyed	Automotive, Communication Systems, Instrumentation	Plastic	Weathertight
Conxall/Switchcraft 6380-2PG-315	Unshielded	Brass	Varies by Wire Gauge	Nylon, Polyamide (PA)	600 V	Black	Bayonet Lock	Free Hanging (In-Line)	Male Pins, Plug	Crimp					Gold	-40 °C	115 °C	Backshell	2	Keyed	Automotive, Communication Systems, Instrumentation	Plastic	Weathertight	0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 6380-2PG-311	Unshielded	Brass	Varies by Wire Gauge	Nylon, Polyamide (PA)	600 V	Black	Bayonet Lock	Free Hanging (In-Line)	Male Pins, Plug	Crimp					Gold	-40 °C	115 °C	Backshell	2	Keyed	Automotive, Communication Systems, Instrumentation	Plastic	Weathertight			2.29 mm	0.09 in, 0.14 in	3.56 mm
Conxall/Switchcraft 6380-2PG-318	Unshielded	Brass	Varies by Wire Gauge	Nylon, Polyamide (PA)	600 V	Black	Bayonet Lock	Free Hanging (In-Line)	Male Pins, Plug	Crimp	0.18 in	0.2 in	4.57 mm	5.08 mm	Gold	-40 °C	115 °C	Backshell	2	Keyed	Automotive, Communication Systems, Instrumentation	Plastic	Weathertight
Conxall/Switchcraft 6380-2PG-513	Unshielded	Brass	Varies by Wire Gauge	Nylon, Polyamide (PA)	600 V	Black	Bayonet Lock	Free Hanging (In-Line)	Male Pins, Plug	Crimp					Gold	-40 °C	115 °C	Backshell	2	Keyed	Automotive, Communication Systems, Instrumentation	Plastic	Weathertight	0.13 in, 0.15 in	3.3 mm, 3.81 mm
