6204ZZ

Active

Mechatronics Bearing Group

BALL BEARING SHIELDED 20X47X14MM

Search across all available documentation for this part.

Active

Mechatronics Bearing Group

BALL BEARING SHIELDED 20X47X14MM

Technical Specifications

Parameters and characteristics commom to parts in this series

BALL BEARING SHIELDED 20X47X14MM

Part	Inner Diameter [diameter]	Inner Diameter [diameter]	Static Load Rating	Outer Diameter [diameter]	Outer Diameter [diameter]	Width	Width	Features	Type	Dynamic Load Rating	Material
Mechatronics Bearing Group 6204ZZ	0.785 in	19.93 mm	1390 lbs	1.85 in	47 mm	0.551 in	14 mm	Shield (2)	Ball Bearing	2220 lbs	Bearing Steel
Mechatronics Bearing Group 6204-2RS-RT	0.785 in	19.93 mm	1390 lbs	1.85 in	47 mm	0.551 in	14 mm	Contact Seal (2)	Ball Bearing	2220 lbs	Bearing Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

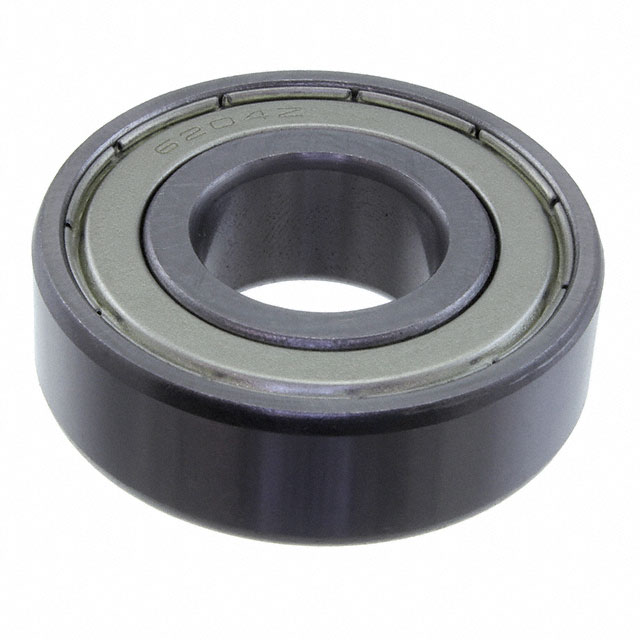

Ball Bearing 0.785" (19.93mm) ID X 1.850" (47.00mm) OD X 0.551" (14.00mm) W

Technical documentation and resources
