MCF5235CVM100

Obsolete

Motorola

IC MCU 32BIT ROMLESS 256MAPBGA

Search across all available documentation for this part.

Obsolete

Motorola

IC MCU 32BIT ROMLESS 256MAPBGA

Technical Specifications

Parameters and characteristics for this part

Specification	MCF5235CVM100

Connectivity	UART/USART, I2C, Ethernet, EBI/EMI, CANbus, SPI
Core Processor	ColdFire V2
Core Size	32-Bit Single-Core
Mounting Type	Surface Mount
Number of I/O	113 I/O
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	External

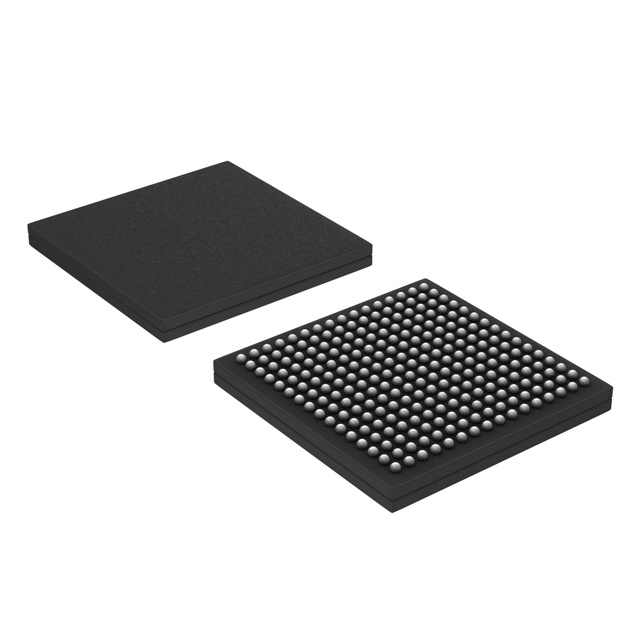

Package / Case	256-LBGA
Peripherals	DMA, WDT
Program Memory Type	ROMless
RAM Size	64 K
Speed	100 MHz
Supplier Device Package	256-MAPBGA (17x17)
Voltage - Supply (Vcc/Vdd) [Max]	1.6 V
Voltage - Supply (Vcc/Vdd) [Min]	1.4 V

IC MCU 32BIT ROMLESS 256MAPBGA

Part	Core Size	Speed	Mounting Type	Core Processor	Program Memory Type	Peripherals	Oscillator Type	Number of I/O	RAM Size	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Connectivity
Motorola MCF5235CVM100	32-Bit Single-Core	100 MHz	Surface Mount	ColdFire V2	ROMless	DMA, WDT	External	113 I/O	64 K	1.4 V	1.6 V	256-LBGA	85 °C	-40 °C	256-MAPBGA (17x17)	CANbus, EBI/EMI, Ethernet, I2C, SPI, UART/USART

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Coldfire V2 MCF523x Microcontroller IC 32-Bit Single-Core 100MHz ROMless 256-MAPBGA (17x17)

Technical documentation and resources

No documents available
