73066-BB-36

Obsolete

Pomona Electronics

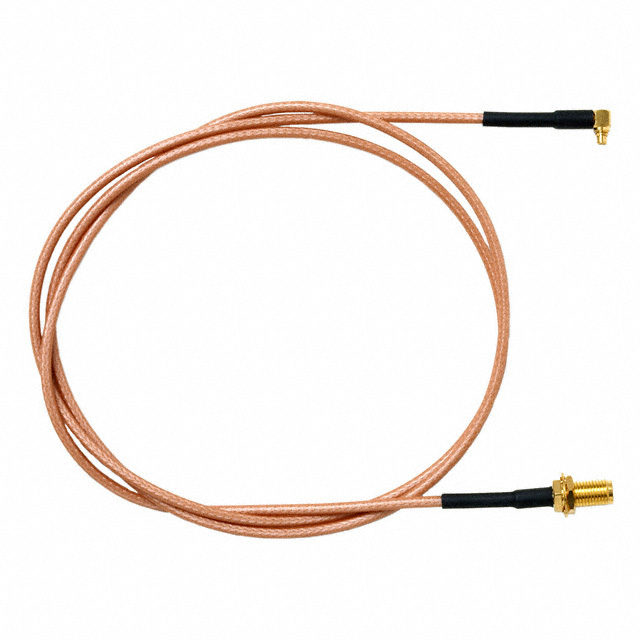

CBL ASSY SMA-MMCX JACK-PLUG 36"

Search across all available documentation for this part.

Obsolete

Pomona Electronics

CBL ASSY SMA-MMCX JACK-PLUG 36"

Technical Specifications

Parameters and characteristics for this part

Specification	73066-BB-36

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	MMCX Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	91.44 cm
Length	36 in
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Overall Impedance	50 Ohms
Style	SMA to MMCX

Part	2nd Contact Gender	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	1st Contact Gender	Length	Length	2nd Connector	Overall Impedance	2nd Connector Mounting Type	1st Connector Mounting Feature	1st Connector	Features	Style	Color	1st Connector Mounting Type	Cable Impedance	Cable Type
Pomona Electronics 73066-BB-36	Male	155 °C	-55 °C	3 GHz	Female	91.44 cm	36 in	MMCX Plug Right Angle	50 Ohms	Free Hanging (In-Line)	Bulkhead - Front Side Nut	SMA Jack	Shielded	SMA to MMCX	Copper	Panel Mount	50 Ohms	RG-316
Pomona Electronics 73066-BB-12	Male	155 °C	-55 °C	3 GHz	Female	304.8 mm	12 "	MMCX Plug Right Angle	50 Ohms	Free Hanging (In-Line)	Bulkhead - Front Side Nut	SMA Jack	Shielded	SMA to MMCX	Copper	Panel Mount	50 Ohms	RG-316

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cable Assembly Coaxial SMA to MMCX RG-316 36.00" (914.40mm)
