25BSP30-B-1-12C

Active

Grayhill Inc.

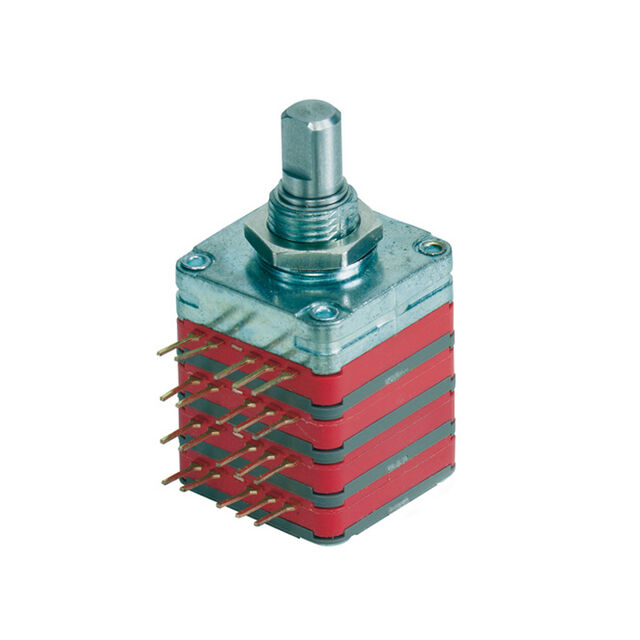

ROTARY ENCODER MECHANICAL 12PPR

Search across all available documentation for this part.

Active

Grayhill Inc.

ROTARY ENCODER MECHANICAL 12PPR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	25BSP30-B-1-12C	25BSP30 Series

Actuator Type	0.25	0.25
Actuator Type	Flatted End	Flatted End
Built in Switch	False	False
Detent	False	False
Encoder Type	Mechanical	Mechanical
Orientation	Right Angle	Right Angle
Output Type	True	True
Pulses per Revolution	12 pulses per revolution	12 pulses per revolution
Rotational Life (Cycles Min) [Min]	50K	50K
Termination Style	PC Pin	PC Pin

ROTARY ENCODER MECHANICAL 12PPR

Part	Built in Switch	Pulses per Revolution	Detent	Orientation	Termination Style	Output Type	Rotational Life (Cycles Min) [Min]	Actuator Type	Actuator Type	Encoder Type
Grayhill Inc. 25BSP30-B-1-11		12 pulses per revolution		Right Angle	PC Pin		50K	0.25	Flatted End	Mechanical
Grayhill Inc. 25BSP30-B-1-12C		12 pulses per revolution		Right Angle	PC Pin		50K	0.25	Flatted End	Mechanical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 41.23

General part information

Rotary Encoder Mechanical 12 Binary (Absolute) Right Angle

Technical documentation and resources
