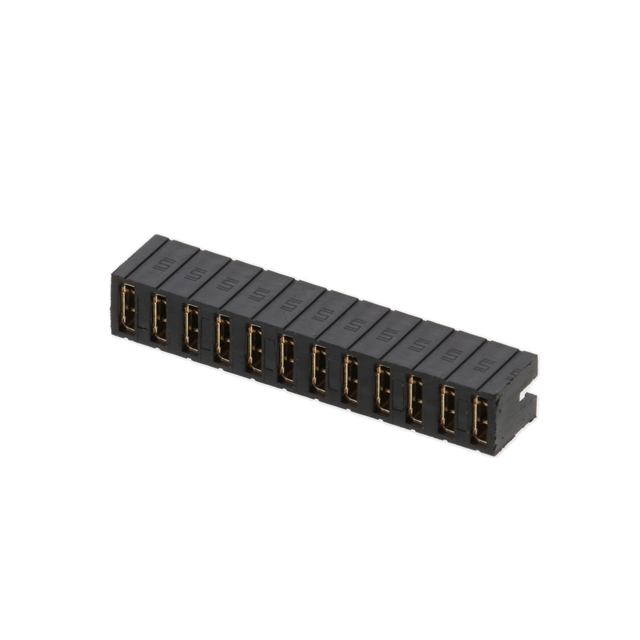

MNT-112-BK-G

Active

Samtec Inc.

HEADERS & WIRE HOUSINGS .100" MULTI POSITION SHUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet +1

MNT-112-BK-G

Active

Samtec Inc.

HEADERS & WIRE HOUSINGS .100" MULTI POSITION SHUNT

Deep-Dive with AI

DocumentsDatasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MNT-112-BK-G

Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Current Rating (Amps)	3.9 A
Gender	Female Sockets
Height [z]	6.1 mm
Height [z]	0.24 in
Housing Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid)	24
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Type	Open Top

MNT-102 Series

Headers & Wire Housings .100" Multi Position Shunt

Part	Material Flammability Rating	Color	Height [z]	Height [z]	Gender	Number of Positions or Pins (Grid)	Pitch [x]	Pitch [x]	Type	Current Rating (Amps)	Contact Finish	Housing Material	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions or Pins (Grid) [custom]
Samtec Inc. MNT-112-BK-H	UL94 V-0	Black	6.1 mm	0.24 in	Female Sockets	24	2.54 mm	0.1 in	Open Top	3.9 A	Gold	Liquid Crystal Polymer (LCP)
Samtec Inc. MNT-102-BK-H	UL94 V-0	Black	6.1 mm	0.24 in	Female Sockets		2.54 mm	0.1 in	Open Top	3.9 A	Gold	Liquid Crystal Polymer (LCP)	4
Samtec Inc. MNT-113-BK-T	UL94 V-0	Black	6.1 mm	0.24 in	Female Sockets		2.54 mm	0.1 in	Open Top	3.9 A	Tin	Liquid Crystal Polymer (LCP)
Samtec Inc. MNT-109-BK-H	UL94 V-0	Black	6.1 mm	0.24 in	Female Sockets	18	2.54 mm	0.1 in	Open Top	3.9 A	Gold	Liquid Crystal Polymer (LCP)
Samtec Inc. MNT-116-BK-T	UL94 V-0	Black	6.1 mm	0.24 in	Female Sockets		2.54 mm	0.1 in	Open Top	3.9 A	Tin	Liquid Crystal Polymer (LCP)		2 x 16	32
Samtec Inc. MNT-112-BK-G	UL94 V-0	Black	6.1 mm	0.24 in	Female Sockets	24	2.54 mm	0.1 in	Open Top	3.9 A	Gold	Liquid Crystal Polymer (LCP)				10 Áin	0.25 Ám
Samtec Inc. MNT-105-BK-G	UL94 V-0	Black	6.1 mm	0.24 in	Female Sockets		2.54 mm	0.1 in	Open Top	3.9 A	Gold	Liquid Crystal Polymer (LCP)		2 x 5		10 Áin	0.25 Ám	10
Samtec Inc. MNT-113-BK-H	UL94 V-0	Black	6.1 mm	0.24 in	Female Sockets		2.54 mm	0.1 in	Open Top	3.9 A	Gold	Liquid Crystal Polymer (LCP)
Samtec Inc. MNT-116-BK-H	UL94 V-0	Black	6.1 mm	0.24 in	Female Sockets		2.54 mm	0.1 in	Open Top	3.9 A	Gold	Liquid Crystal Polymer (LCP)		2 x 16	32
Samtec Inc. MNT-106-BK-T	UL94 V-0	Black	6.1 mm	0.24 in	Female Sockets	2 6 12	2.54 mm	0.1 in	Open Top	3.9 A	Tin	Liquid Crystal Polymer (LCP)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.99
		25	$ 3.60
		50	$ 3.35
		100	$ 3.19
		500	$ 2.98
Sager	N/A	1	$ 3.99
		25	$ 3.60
		50	$ 3.35
		100	$ 3.19
		500	$ 2.46
		1000	$ 2.21
		2500	$ 1.73
		5000	$ 1.24

Description

General part information

MNT-102 Series

Headers & Wire Housings .100" Multi Position Shunt

Documents

Technical documentation and resources

Datasheet

Document

Datasheet

MNT Datasheet

Datasheet
