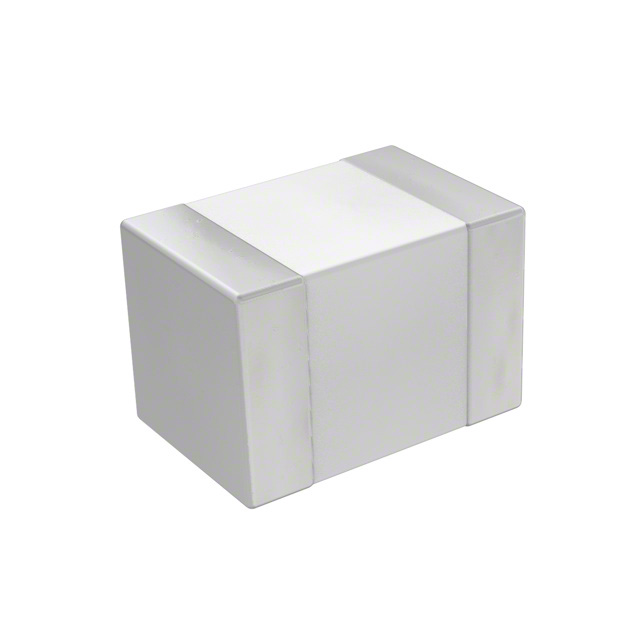

MA4PH237-1079T
ActiveMACOM Technology Solutions
RF DIODE PIN 200V 2W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MA4PH237-1079T
ActiveMACOM Technology Solutions
RF DIODE PIN 200V 2W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MA4PH237-1079T |
|---|---|
| Capacitance @ Vr, F | 1.5 pF |
| Diode Type | PIN - Single |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -65 °C |
| Package / Case | 2-SMD |
| Power Dissipation (Max) [Max] | 2 W |
| Resistance @ If, F | 600 mOhm |
| Voltage - Peak Reverse (Max) [Max] | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 16.80 | |
| 10 | $ 15.44 | |||
| 25 | $ 14.80 | |||
| 100 | $ 13.04 | |||
| 250 | $ 12.40 | |||
| Digi-Reel® | 1 | $ 16.80 | ||
| 10 | $ 15.44 | |||
| 25 | $ 14.80 | |||
| 100 | $ 13.04 | |||
| 250 | $ 12.40 | |||
| Tape & Reel (TR) | 750 | $ 11.60 | ||
Description
General part information
MA4PH237 Series
RF Diode PIN - Single 200V 2 W
