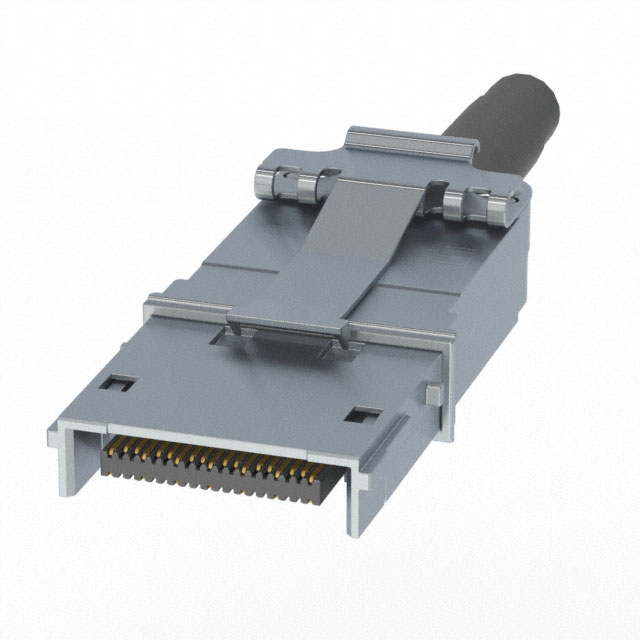

Specification	EPLSP-019-1500

Cable Type	Round, Twin Axial
Color	Orange
Connector Type	Card Edge to Card Edge
Current - Max/Contact	1.7 A
Fastening Type	Latch Lock, Push-Pull
Gender	Male to Male
Length	4.92 ft
Number of Positions	38
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-20 °C
Shielding	Shielded
Usage	Ethernet
Wire Gauge	32 AWG

EPLSP-019 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Current - Max/Contact	Wire Gauge	Fastening Type	Cable Type	Number of Positions	Color	Gender	Usage	Length	Connector Type	Shielding
Samtec Inc. EPLSP-019-0400	-20 °C	105 °C	1.7 A	32 AWG	Latch Lock Push-Pull	Round Twin Axial	38	Orange	Male to Male	Ethernet	1.31 ft	Card Edge to Card Edge	Shielded
Samtec Inc. EPLSP-019-0250	-20 °C	105 °C	1.7 A	32 AWG	Latch Lock Push-Pull	Round Twin Axial	38	Orange	Male to Male	Ethernet	0.82 ft	Card Edge to Card Edge	Shielded
Samtec Inc. EPLSP-019-3000	-20 °C	105 °C	1.7 A	32 AWG	Latch Lock Push-Pull	Round Twin Axial	38	Orange	Male to Male	Ethernet	9.84 ft	Card Edge to Card Edge	Shielded
Samtec Inc. EPLSP-019-0800	-20 °C	105 °C	1.7 A	32 AWG	Latch Lock Push-Pull	Round Twin Axial	38	Orange	Male to Male	Ethernet	2.62 ft	Card Edge to Card Edge	Shielded
Samtec Inc. EPLSP-019-0500	-20 °C	105 °C	1.7 A	32 AWG	Latch Lock Push-Pull	Round Twin Axial	38	Orange	Male to Male	Ethernet	1.64 ft	Card Edge to Card Edge	Shielded
Samtec Inc. EPLSP-019-2000	-20 °C	105 °C	1.7 A	32 AWG	Latch Lock Push-Pull	Round Twin Axial	38	Orange	Male to Male	Ethernet	6.56 ft	Card Edge to Card Edge	Shielded
Samtec Inc. EPLSP-019-0350	-20 °C	105 °C	1.7 A	32 AWG	Latch Lock Push-Pull	Round Twin Axial	38	Orange	Male to Male	Ethernet	1.15 ft	Card Edge to Card Edge	Shielded
Samtec Inc. EPLSP-019-1500	-20 °C	105 °C	1.7 A	32 AWG	Latch Lock Push-Pull	Round Twin Axial	38	Orange	Male to Male	Ethernet	4.92 ft	Card Edge to Card Edge	Shielded
Samtec Inc. EPLSP-019-1000	-20 °C	105 °C	1.7 A	32 AWG	Latch Lock Push-Pull	Round Twin Axial	38	Orange	Male to Male	Ethernet	3.28 ft	Card Edge to Card Edge	Shielded
Samtec Inc. EPLSP-019-0600	-20 °C	105 °C	1.7 A	32 AWG	Latch Lock Push-Pull	Round Twin Axial	38	Orange	Male to Male	Ethernet	1.96 ft	Card Edge to Card Edge	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

EPLSP-019-1500 | Datasheet
