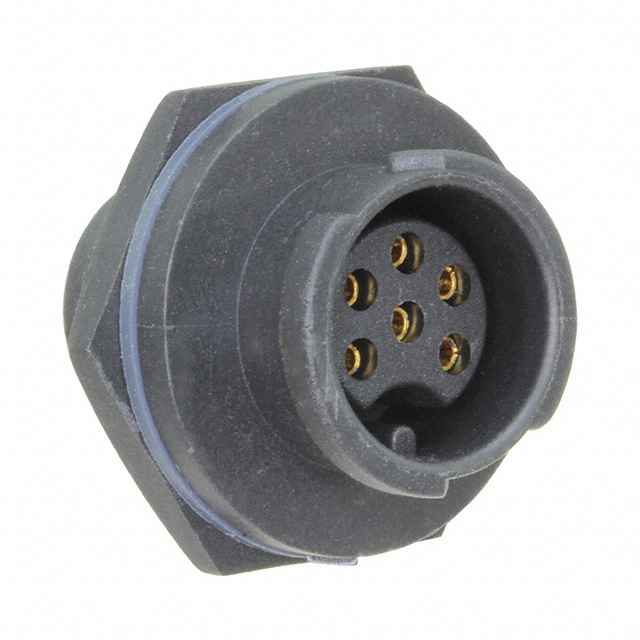

BD-06RMFS-QC8001

Active

Amphenol LTW

X-LOK, STANDARD SIZE, PLASTIC, 5A, 06 PINS, MALE CONNECTOR, FEMALE CONTACT, CIRCULAR, PUSH LOCK, SOLDER, RECEPTACLE, IP68 ROHS C

Search across all available documentation for this part.

Active

Amphenol LTW

X-LOK, STANDARD SIZE, PLASTIC, 5A, 06 PINS, MALE CONNECTOR, FEMALE CONTACT, CIRCULAR, PUSH LOCK, SOLDER, RECEPTACLE, IP68 ROHS C

Technical Specifications

Parameters and characteristics for this part

Specification	BD-06RMFS-QC8001

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded
Voltage Rating	300 VAC

Part	Shell Material	Fastening Type	Material Flammability Rating	Current Rating (Amps)	Shell Size - Insert	Orientation	Ingress Protection	Voltage Rating	Connector Type	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Contact Finish - Mating	Insert Material	Shielding	Number of Positions	Color	Contact Material
Amphenol LTW BD-06RMFS-QC7001
Amphenol LTW BD-06RMFS-QC8001	Glass Filled Nylon Polyamide (PA)	Push-Pull	UL94 V-0	5 A	B	Keyed	IP68 - Dust Tight Waterproof	300 VAC	Receptacle Female Sockets	Bulkhead - Rear Side Nut	-40 °C	105 ░C	Plastic	Gold	Polyamide (PA) Nylon Glass Filled	Unshielded	6	Black	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 (Data) Position Circular Connector Receptacle, Female Sockets Solder Cup
