223083-01
ActiveQualtek
CORD 18AWG 1-15P TO IEC320-C7 8'
Deep-Dive with AI
Search across all available documentation for this part.
223083-01
ActiveQualtek
CORD 18AWG 1-15P TO IEC320-C7 8'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 223083-01 |
|---|---|
| 1st Connector | NEMA 1-15P, Polarized |
| 2nd Connector | Polarized, IEC 320-C7 |
| Approval Agency Marking | UL, cUL |
| Approved Countries | United States, Canada |
| Color | Black |
| Cord Type | SPT-2 |
| Current Rating (Amps) | 7 A |
| Length [x] | 2.44 m |
| Length [x] | 8 ft |
| Number of Conductors | 2 |
| Operating Temperature | 105 C |
| Shielding | Unshielded |
| Style | Male Pins, Female Sockets |
| Voltage Rating | 125 VAC |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.96 | |
| 10 | $ 5.41 | |||
| 25 | $ 5.12 | |||
| 50 | $ 5.01 | |||
| 150 | $ 4.77 | |||
| 300 | $ 4.17 | |||
| 600 | $ 4.05 | |||
| 1050 | $ 3.46 | |||
| 2550 | $ 3.22 | |||
Description
General part information
223083 Series

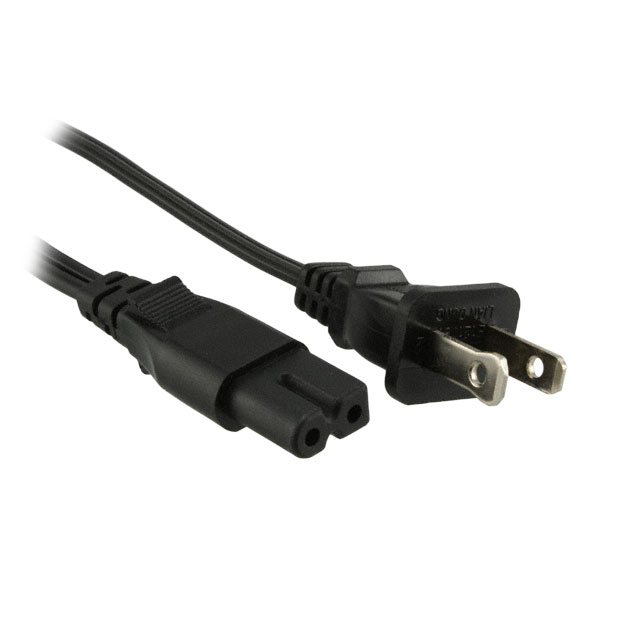

8.00' (2.44m) Power Cord Black NEMA 1-15P, Polarized To IEC 320-C7, Polarized SPT-2
Documents
Technical documentation and resources
