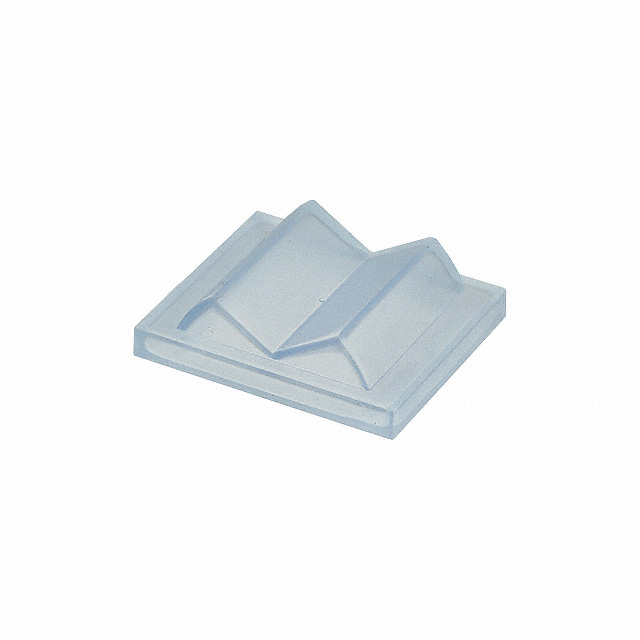

1113/62

Active

APM HEXSEAL

ROCKER BOOT CLEAR

Search across all available documentation for this part.

Active

APM HEXSEAL

ROCKER BOOT CLEAR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ROCKER BOOT CLEAR

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1113/62	1113 Series

Accessory Type	-	Boot
Color	Clear	Clear
For Use With/Related Products	Multiple Series	Multiple Series, Circuit Breaker
Ingress Protection	IP55 - Dust Protected, Water Resistant	IP55 - Dust Protected, Water Resistant
Material	Silicone Rubber	Silicone Rubber
Mounting Feature	Front of Panel	Front of Panel
Operating Temperature [Max]	204 °C	204 °C
Operating Temperature [Min]	-62 °C	-62 °C
Size / Dimension	-	7.54 mm
Size / Dimension	-	16.27 mm
Size / Dimension [x]	1.093 in	1.093 - 1.75 in
Size / Dimension [x]	27.78 mm	27.78 - 44.45 mm
Size / Dimension [y]	24.61 mm	13.1 - 35.32 mm
Size / Dimension [y]	0.968 in	0.515 - 1.39 in
Size / Dimension [z]	7.54 mm	7.54 - 14.22 mm
Size / Dimension [z]	0.297 in	0.297 - 0.56 "
Type	Rocker Boot	Rocker Boot

ROCKER BOOT CLEAR

Part	Color	Ingress Protection	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	For Use With/Related Products	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Material	Type	Accessory Type	Size / Dimension [z]	Size / Dimension [y]
APM HEXSEAL 1113/75	Clear	IP55 - Dust Protected, Water Resistant	1.437 in	35.32 mm	0.413 "	1.39 in	10.49 mm	36.51 mm	Multiple Series	-62 °C	204 °C	Front of Panel	Silicone Rubber	Rocker Boot
APM HEXSEAL 1113/63	Clear	IP55 - Dust Protected, Water Resistant	1.093 in	13.1 mm	0.297 in	0.515 "	7.54 mm	27.78 mm	Multiple Series	-62 °C	204 °C	Front of Panel	Silicone Rubber	Rocker Boot
APM HEXSEAL 1113/71									Circuit Breaker						Boot
APM HEXSEAL 1113/80	Clear	IP55 - Dust Protected, Water Resistant	1.75 "	22.86 mm	0.56 "	0.9 "	14.22 mm	44.45 mm	Multiple Series	-62 °C	204 °C	Front of Panel	Silicone Rubber	Rocker Boot
APM HEXSEAL 1113/66	Clear	IP55 - Dust Protected, Water Resistant							Multiple Series	-62 °C	204 °C	Front of Panel	Silicone Rubber	Rocker Boot
APM HEXSEAL 1113/62	Clear	IP55 - Dust Protected, Water Resistant	1.093 in	24.61 mm	0.297 in	0.968 in	7.54 mm	27.78 mm	Multiple Series	-62 °C	204 °C	Front of Panel	Silicone Rubber	Rocker Boot
APM HEXSEAL 1113/70	Clear	IP55 - Dust Protected, Water Resistant	1.218 "		0.297 in	0.64 in		30.96 mm	Multiple Series	-62 °C	204 °C	Front of Panel	Silicone Rubber	Rocker Boot		7.54 mm	16.27 mm
