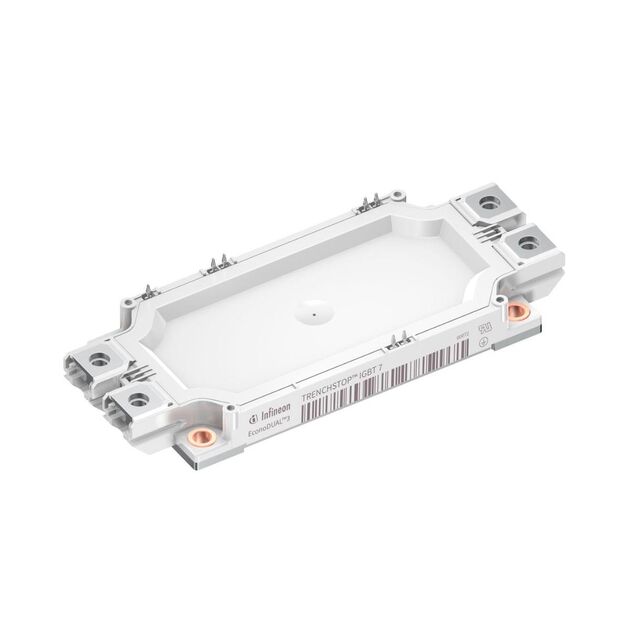

FF900R17ME7B11BPSA1
ActiveInfineon Technologies
THE FF900R17ME7_B11 IS A 1700 V, 900 A DUAL IGBT MODULE
Deep-Dive with AI
Search across all available documentation for this part.
FF900R17ME7B11BPSA1
ActiveInfineon Technologies
THE FF900R17ME7_B11 IS A 1700 V, 900 A DUAL IGBT MODULE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FF900R17ME7B11BPSA1 |
|---|---|
| Configuration | 2 Independent |
| Current - Collector (Ic) (Max) [Max] | 900 A |
| Current - Collector Cutoff (Max) [Max] | 5 mA |
| IGBT Type | Trench Field Stop |
| Input | Standard |
| Input Capacitance (Cies) @ Vce | 93.8 nF |
| Mounting Type | Chassis Mount |
| NTC Thermistor | True |
| Operating Temperature [Max] | 175 °C |
| Operating Temperature [Min] | -40 C |
| Package / Case | Module |
| Power - Max [Max] | 20 mW |
| Vce(on) (Max) @ Vge, Ic | 1.85 V |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
FF900R17 Series
EconoDUAL™ 31700 V, 900 A dualTRENCHSTOP™ IGBT7module with emitter controlled 7 diode, NTC andPressFITcontact technology. Also available with pre-appliedThermal Interface Material.
