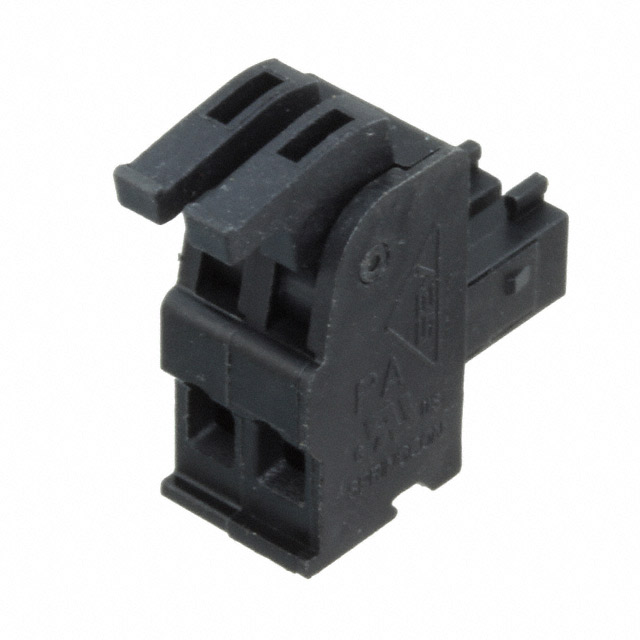

ASP0430222

Active

METZ CONNECT USA Inc.

SPRING CLAMP TERMINAL BLOCK, PLU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ASP0430222

Active

METZ CONNECT USA Inc.

SPRING CLAMP TERMINAL BLOCK, PLU

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ASP0430222	ASP043 Series

Color	Black	Black
Contact Material	Copper Alloy	Copper Alloy
Contact Mating Finish	Tin	Tin
Current - UL	10 A	10 A
Features	Lever Actuated	Lever Actuated
Housing Material	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6
Insulation Height	0.61 in	0.61 in
Insulation Height	15.49 mm	15.49 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	2	2 - 12
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	3.5 mm	3.5 mm
Pitch [x]	0.138 in	0.138 in
Positions Per Level	2	2 - 12
Termination Style	Screwless - Spring Cage, Tension Clamp	Screwless - Spring Cage, Tension Clamp
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - UL	150 V	150 V
Wire Gauge or Range - AWG [Max]	28 AWG	28 AWG
Wire Gauge or Range - AWG [Min]	16 AWG	16 AWG
Wire Gauge or Range - mm² [Max]	1.5 mm²	1.5 mm²
Wire Gauge or Range - mm² [Min]	0.08 mm²	0.08 mm²

ASP043 Series

SPRING CLAMP TERMINAL BLOCK, PLU

Part	Contact Material	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Housing Material	Positions Per Level	Current - UL	Contact Mating Finish	Features	Color	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Insulation Height	Insulation Height	Pitch [x]	Pitch [x]	Type	Mounting Type	Number of Levels	Termination Style	Material Flammability Rating	Voltage - UL	Number of Positions
METZ CONNECT USA Inc. ASP0430322	Copper Alloy	28 AWG	16 AWG	Polyamide (PA46), Nylon 4/6	3	10 A	Tin	Lever Actuated	Black	-40 °C	105 ░C	1.5 mm²	0.08 mm²	0.61 in	15.49 mm	3.5 mm	0.138 in	Plug, Female Sockets	Free Hanging (In-Line)	1	Screwless - Spring Cage, Tension Clamp	UL94 V-0	150 V
METZ CONNECT USA Inc. ASP0430822	Copper Alloy	28 AWG	16 AWG	Polyamide (PA46), Nylon 4/6	8	10 A	Tin	Lever Actuated	Black	-40 °C	105 ░C	1.5 mm²	0.08 mm²	0.61 in	15.49 mm	3.5 mm	0.138 in	Plug, Female Sockets	Free Hanging (In-Line)	1	Screwless - Spring Cage, Tension Clamp	UL94 V-0	150 V	8
METZ CONNECT USA Inc. ASP0430222	Copper Alloy	28 AWG	16 AWG	Polyamide (PA46), Nylon 4/6	2	10 A	Tin	Lever Actuated	Black	-40 °C	105 ░C	1.5 mm²	0.08 mm²	0.61 in	15.49 mm	3.5 mm	0.138 in	Plug, Female Sockets	Free Hanging (In-Line)	1	Screwless - Spring Cage, Tension Clamp	UL94 V-0	150 V	2
METZ CONNECT USA Inc. ASP0430422	Copper Alloy	28 AWG	16 AWG	Polyamide (PA46), Nylon 4/6	4	10 A	Tin	Lever Actuated	Black	-40 °C	105 ░C	1.5 mm²	0.08 mm²	0.61 in	15.49 mm	3.5 mm	0.138 in	Plug, Female Sockets	Free Hanging (In-Line)	1	Screwless - Spring Cage, Tension Clamp	UL94 V-0	150 V	4
METZ CONNECT USA Inc. ASP0431222	Copper Alloy	28 AWG	16 AWG	Polyamide (PA46), Nylon 4/6	12	10 A	Tin	Lever Actuated	Black	-40 °C	105 ░C	1.5 mm²	0.08 mm²	0.61 in	15.49 mm	3.5 mm	0.138 in	Plug, Female Sockets	Free Hanging (In-Line)	1	Screwless - Spring Cage, Tension Clamp	UL94 V-0	150 V	12
METZ CONNECT USA Inc. ASP0431022	Copper Alloy	28 AWG	16 AWG	Polyamide (PA46), Nylon 4/6	10	10 A	Tin	Lever Actuated	Black	-40 °C	105 ░C	1.5 mm²	0.08 mm²	0.61 in	15.49 mm	3.5 mm	0.138 in	Plug, Female Sockets	Free Hanging (In-Line)	1	Screwless - Spring Cage, Tension Clamp	UL94 V-0	150 V	10
METZ CONNECT USA Inc. ASP0430522	Copper Alloy	28 AWG	16 AWG	Polyamide (PA46), Nylon 4/6	5	10 A	Tin	Lever Actuated	Black	-40 °C	105 ░C	1.5 mm²	0.08 mm²	0.61 in	15.49 mm	3.5 mm	0.138 in	Plug, Female Sockets	Free Hanging (In-Line)	1	Screwless - Spring Cage, Tension Clamp	UL94 V-0	150 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.02
		10	$ 1.53
		25	$ 1.42
		50	$ 1.27
		100	$ 1.24
		250	$ 1.09
		500	$ 0.99
		1000	$ 0.90
		5000	$ 0.79

Description

General part information

ASP043 Series

2 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)
