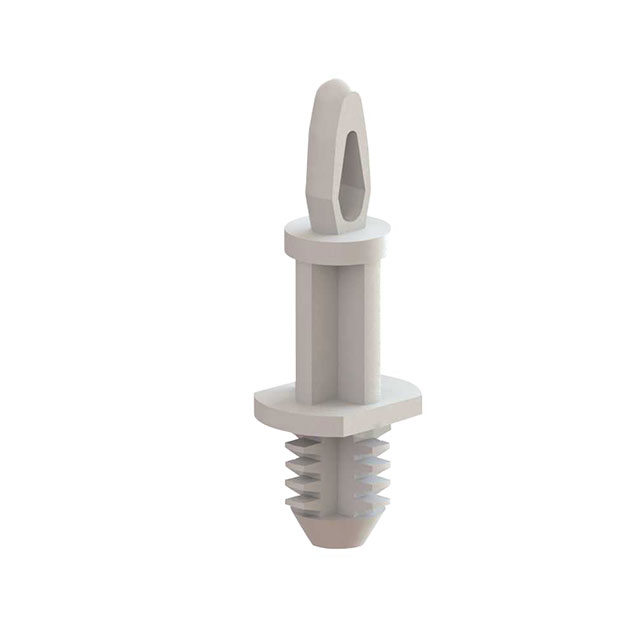

BHC-6-01
ActiveEssentra Access Solutions
BRD SPT SNAP FIT BARBED 3/8"
Deep-Dive with AI
Search across all available documentation for this part.
BHC-6-01
ActiveEssentra Access Solutions
BRD SPT SNAP FIT BARBED 3/8"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BHC-6-01 |
|---|---|
| Between Board Height | 0.375 in |
| Between Board Height | 0.375 in |
| Between Board Height | 9.53 mm |
| Features | Blind Hole Mating |
| Holding Type | Snap Fit |
| Length - Overall [x] | 28.4 mm |
| Length - Overall [x] | 1.118 in |
| Material | Nylon |
| Mounting Hole Diameter | 7.92 mm |
| Mounting Hole Diameter | 0.3125 " |
| Mounting Hole Diameter | 0.312 " |
| Mounting Panel Thickness | 0.25 " |
| Mounting Panel Thickness | 6.35 mm |
| Mounting Panel Thickness | 0.25 " |
| Mounting Type | Barbed Fastener |
| Support Hole Diameter [diameter] | 0.15625 in |
| Support Hole Diameter [diameter] | 3.96 mm |
| Support Hole Diameter [diameter] | 0.156 in |
| Support Panel Thickness | 0.0625 " |
| Support Panel Thickness | 0.062 " |
| Support Panel Thickness | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.34 | |
| 5 | $ 0.28 | |||
| 10 | $ 0.26 | |||
| 25 | $ 0.23 | |||
| 50 | $ 0.22 | |||
| 100 | $ 0.21 | |||
| 250 | $ 0.19 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.17 | |||
Description
General part information
BHC-6 Series
Board Support Snap Fit / Barbed Fastener Nylon 0.375" (9.53mm) 3/8"
Documents
Technical documentation and resources
No documents available
