172-E50-101R021

Obsolete

NorComp Inc.

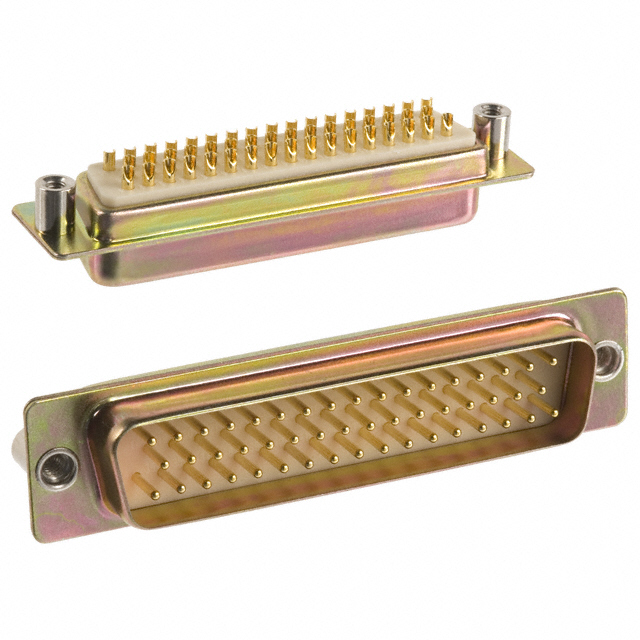

CONN D-SUB PLUG 50POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Backshell Reference Guide

172-E50-101R021

Obsolete

NorComp Inc.

CONN D-SUB PLUG 50POS PNL MNT

Deep-Dive with AI

DocumentsDatasheet Backshell Reference Guide

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.65
		10	$ 4.79
		25	$ 4.51
		80	$ 4.26

Description

General part information

172-E50 Series

50 Position D-Sub Plug, Male Pins Connector

Documents

Technical documentation and resources

Datasheet

Backshell Reference Guide

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	172-E50-101R021	172-E50 Series

Color	White	White
Connector Style	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins, Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Contact Material	Brass	Brass
Contact Type	Signal	Signal
Current Rating (Amps)	5 A	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT), Polyamide (PA6T), Nylon 6T, Polybutylene Terephthalate (PBT), Glass Filled
Features	-	Grounding Indents, Board Lock
Flange Feature	Cable Side	Cable Side, Board Side, 4-40, Mating Side, Female Screwlock (4-40), Cable Side (4-40), Housing/Shell (Unthreaded), Board Side (4-40)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	-	Through Hole, Panel Mount
Number of Positions	50	50
Number of Rows	3	3
Shell Material, Finish	Steel, Yellow Chromate Plated	Steel, Yellow Chromate Plated, Nickel Plated, Steel
Shell Size, Connector Layout	5	5
Termination	-	Solder
Wire Gauge [Max]	26 AWG	26 AWG
Wire Gauge [Min]	20 AWG	20 AWG

172-E50 Series

CONN D-SUB PLUG 50POS PNL MNT

Part	Contact Material	Contact Finish	Connector Type	Dielectric Material	Number of Rows	Wire Gauge [Min]	Wire Gauge [Max]	Current Rating (Amps)	Number of Positions	Color	Shell Material, Finish	Contact Finish Thickness	Connector Style	Material Flammability Rating	Shell Size, Connector Layout	Contact Type	Flange Feature	Features	Termination	Mounting Type
NorComp Inc. 172-E50-101R021	Brass	Gold	Male Pins, Plug	Polybutylene Terephthalate (PBT)	3	20 AWG	26 AWG	5 A	50	White	Steel, Yellow Chromate Plated	Flash	D-Sub	UL94 V-0	5	Signal	Cable Side
NorComp Inc. 172-E50-102-021	Brass	Gold	Male Pins, Plug	Polybutylene Terephthalate (PBT)	3			5 A	50	White		Flash	D-Sub	UL94 V-0	5	Signal	Cable Side	Grounding Indents
NorComp Inc. 172-E50-211-011		Gold	Receptacle, Female Sockets	Polybutylene Terephthalate (PBT)	3			5 A	50	White	Steel, Yellow Chromate Plated	Flash	D-Sub	UL94 V-0	5	Signal	4-40, Board Side		Solder	Panel Mount, Through Hole
NorComp Inc. 172-E50-201R911	Brass	Gold	Receptacle, Female Sockets	Polybutylene Terephthalate (PBT)	3	20 AWG	26 AWG	5 A	50	White	Steel, Yellow Chromate Plated	Flash	D-Sub	UL94 V-0	5	Signal	Cable Side (4-40), Mating Side, Female Screwlock (4-40)
NorComp Inc. 172-E50-202-001	Brass	Gold	Receptacle, Female Sockets	Polybutylene Terephthalate (PBT)	3			5 A	50			Flash	D-Sub	UL94 V-0	5	Signal	Housing/Shell (Unthreaded)
NorComp Inc. 172-E50-211R021	Brass	Gold	Receptacle, Female Sockets	Polyamide (PA6T), Nylon 6T	3			5 A	50	White	Steel, Yellow Chromate Plated	Flash	D-Sub	UL94 V-0	5	Signal	4-40, Board Side		Solder	Panel Mount, Through Hole
NorComp Inc. 172-E50-101R911	Brass	Gold	Male Pins, Plug	Polybutylene Terephthalate (PBT)	3	20 AWG	26 AWG	5 A	50	White	Steel, Yellow Chromate Plated	Flash	D-Sub	UL94 V-0	5	Signal	Cable Side (4-40), Mating Side, Female Screwlock (4-40)
NorComp Inc. 172-E50-203R031	Brass	Gold	Receptacle, Female Sockets	Polybutylene Terephthalate (PBT)	3	20 AWG	26 AWG	5 A	50	White	Nickel Plated, Steel	Flash	D-Sub	UL94 V-0	5	Signal	4-40
NorComp Inc. 172-E50-212-031		Gold	Receptacle, Female Sockets	Polybutylene Terephthalate (PBT)	3			5 A	50	White		Flash	D-Sub	UL94 V-0	5	Signal	4-40		Solder	Panel Mount, Through Hole
NorComp Inc. 172-E50-102-911	Brass	Gold	Male Pins, Plug	Polybutylene Terephthalate (PBT)	3			5 A	50	White		Flash	D-Sub	UL94 V-0	5	Signal	Cable Side (4-40), Mating Side, Female Screwlock (4-40)	Board Lock, Grounding Indents
