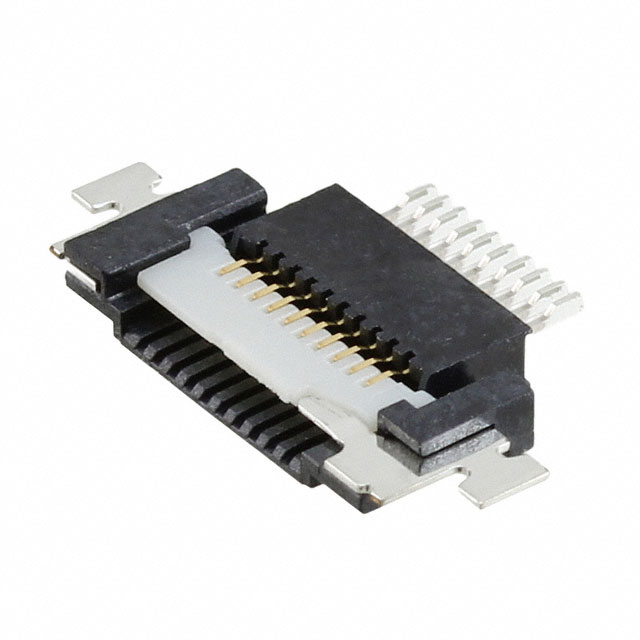

Specification	FA5B008HP1

Actuator Color	White
Actuator Material	Nylon, Glass Filled, Polyamide (PA)
Cable End Type	Tapered
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Per Contact)	0.8 A
Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC
Housing Color	Black
Housing Material	Glass Filled, LCP, Liquid Crystal Polymer
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20 cycles
Mounting Type	Cutout, Board Edge
Number of Positions	8
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Pitch	0.02 in
Termination	Solder
Voltage Rating	50 V

FA5B008H Series

Part	Material Flammability Rating	Locking Feature	Housing Material	Cable End Type	Contact Material	Features	Number of Positions	Mounting Type	Contact Finish	Operating Temperature (Min)	Operating Temperature (Max)	Flat Flex Type	FFC, FCB Thickness	Termination	Connector/Contact Type	Pitch	Actuator Material	Voltage Rating	Housing Color	Mating Cycles	Actuator Color	Current Rating (Per Contact)
JAE Electronics FA5B008HP1R3000	UL94 V-0	Flip Lock	Glass Filled LCP Liquid Crystal Polymer	Tapered	Copper Alloy	Solder Retention Zero Insertion Force (ZIF)	8	Board Edge Cutout	Gold	-40 °C	85 °C	FPC	0.3 mm	Solder	Bottom Contacts	0.02 in	Glass Filled Nylon Polyamide (PA)	50 V	Black	20 cycles	White	0.8 A
JAE Electronics FA5B008HP1	UL94 V-0	Flip Lock	Glass Filled LCP Liquid Crystal Polymer	Tapered	Copper Alloy	Solder Retention Zero Insertion Force (ZIF)	8	Board Edge Cutout	Gold	-40 °C	85 °C	FPC	0.3 mm	Solder	Bottom Contacts	0.02 in	Glass Filled Nylon Polyamide (PA)	50 V	Black	20 cycles	White	0.8 A
