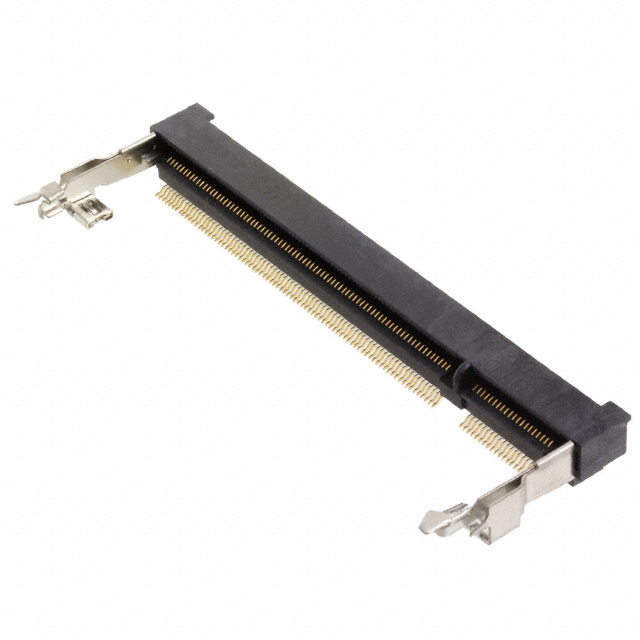

1717468-3
ActiveTE Connectivity Raychem Cable Protection
SEMI-HARD TRAY DDR SODIMM SOCKET 200P 6
Deep-Dive with AI
Search across all available documentation for this part.
1717468-3
ActiveTE Connectivity Raychem Cable Protection
SEMI-HARD TRAY DDR SODIMM SOCKET 200P 6
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1717468-3 |
|---|---|
| Card Thickness | 0.039 in |
| Card Thickness | 1 mm |
| Color | Black |
| Connector Style | SODIMM |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Features | Latches, Board Guide |
| Height [z] | 6.5 mm |
| Height [z] | 0.256 " |
| Insertion Angle | Right Angle |
| Memory Type | DDR SDRAM |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.00 | |
| 20 | $ 6.97 | |||
| 40 | $ 6.79 | |||
| 80 | $ 6.60 | |||
| 240 | $ 6.20 | |||
| 440 | $ 6.16 | |||
| 960 | $ 5.79 | |||
Description
General part information
DDR2 SO DIMM Series
Double Data Rate (DDR), 6.5 mm [.256 in] Stack Height, Right Angle Module Orientation, 200 Position, DDR SODIMM, SO DIMM Sockets
