3-88179-4

Active

TE Connectivity AMP Connectors

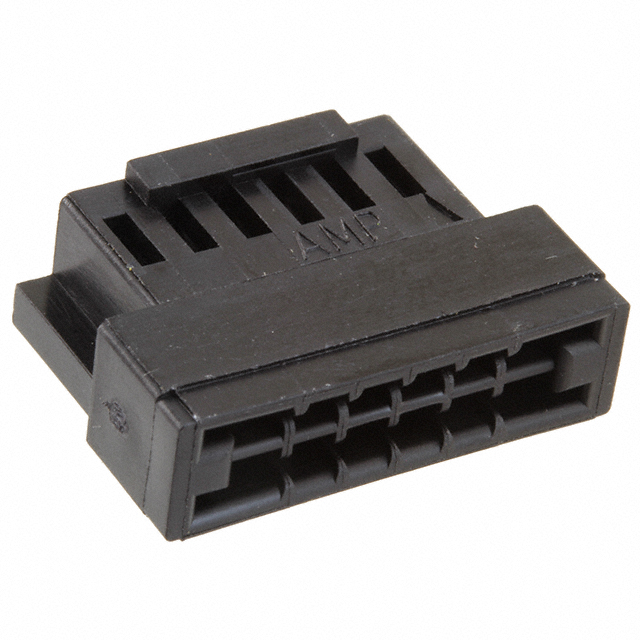

CONN FFC RCPT HSG 12POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

3-88179-4

Active

TE Connectivity AMP Connectors

CONN FFC RCPT HSG 12POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3-88179-4	88179 Series

Connector Type	Housing for Female Contacts	Housing for Female Contacts
Current Rating (Amps)	1.5 A	1.5 A
Features	Positions Stamped	Positions Stamped
FFC, FCB Thickness	0.015 mm	0.015 mm
Flat Flex Type	FFC, Discrete Wire	FFC, Discrete Wire
Housing Color	Black	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA), Nylon, Glass Filled
Insulation Diameter [Max] [diameter]	0.069 "	0.069 "
Insulation Diameter [Max] [diameter]	1.75 mm	1.75 mm
Insulation Diameter [Min] [diameter]	0.045 in	0.045 in
Insulation Diameter [Min] [diameter]	1.14 mm	1.14 mm
Locking Feature	Detent Lock	Detent Lock
Material Flammability Rating	UL94 V-0	UL94 V-0
Note	Contacts Not Included	Contacts Not Included
Number of Positions	12	10 - 40
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Voltage Rating	300 VDC	300 VDC
Wire Gauge [Max]	32 AWG	32 AWG
Wire Gauge [Min]	22 AWG	22 AWG

88179 Series

CONN FFC RCPT HSG 12POS 2.54MM

Part	Voltage Rating	Locking Feature	Housing Color	Note	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Current Rating (Amps)	Features	Housing Material	Flat Flex Type	Pitch [x]	Pitch [x]	Wire Gauge [Max]	Wire Gauge [Min]	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	FFC, FCB Thickness	Connector Type	Material Flammability Rating	Number of Rows
TE Connectivity AMP Connectors 3-88179-4	300 VDC	Detent Lock	Black	Contacts Not Included	0.069 "	1.75 mm	0.045 in	1.14 mm	1.5 A	Positions Stamped	Polyamide (PA), Nylon, Glass Filled	FFC, Discrete Wire	2.54 mm	0.1 in	32 AWG	22 AWG	12	-65 ░C	105 ░C	0.015 mm	Housing for Female Contacts	UL94 V-0	2
TE Connectivity AMP Connectors 88179-6	300 VDC	Detent Lock	Black	Contacts Not Included	0.069 "	1.75 mm	0.045 in	1.14 mm	1.5 A	Positions Stamped	Polyamide (PA), Nylon, Glass Filled	FFC, Discrete Wire	2.54 mm	0.1 in	32 AWG	22 AWG	38	-65 ░C	105 ░C	0.015 mm	Housing for Female Contacts	UL94 V-0	2
TE Connectivity AMP Connectors 88179-5	300 VDC	Detent Lock	Black	Contacts Not Included	0.069 "	1.75 mm	0.045 in	1.14 mm	1.5 A	Positions Stamped	Polyamide (PA), Nylon, Glass Filled	FFC, Discrete Wire	2.54 mm	0.1 in	32 AWG	22 AWG	20	-65 ░C	105 ░C	0.015 mm	Housing for Female Contacts	UL94 V-0	2
TE Connectivity AMP Connectors 1-88179-4	300 VDC	Detent Lock	Black	Contacts Not Included	0.069 "	1.75 mm	0.045 in	1.14 mm	1.5 A	Positions Stamped	Polyamide (PA), Nylon, Glass Filled	FFC, Discrete Wire	2.54 mm	0.1 in	32 AWG	22 AWG	24	-65 ░C	105 ░C	0.015 mm	Housing for Female Contacts	UL94 V-0	2
TE Connectivity AMP Connectors 2-88179-2	300 VDC	Detent Lock	Black	Contacts Not Included	0.069 "	1.75 mm	0.045 in	1.14 mm	1.5 A	Positions Stamped	Polyamide (PA), Nylon, Glass Filled	FFC, Discrete Wire	2.54 mm	0.1 in	32 AWG	22 AWG	40	-65 ░C	105 ░C	0.015 mm	Housing for Female Contacts	UL94 V-0	2
TE Connectivity AMP Connectors 4-88179-2	300 VDC	Detent Lock	Black	Contacts Not Included	0.069 "	1.75 mm	0.045 in	1.14 mm	1.5 A	Positions Stamped	Polyamide (PA), Nylon, Glass Filled	FFC, Discrete Wire	2.54 mm	0.1 in	32 AWG	22 AWG	22 positions	-65 ░C	105 ░C	0.015 mm	Housing for Female Contacts	UL94 V-0	2
TE Connectivity AMP Connectors 3-88179-0	300 VDC	Detent Lock	Black	Contacts Not Included	0.069 "	1.75 mm	0.045 in	1.14 mm	1.5 A	Positions Stamped	Polyamide (PA), Nylon, Glass Filled	FFC, Discrete Wire	2.54 mm	0.1 in	32 AWG	22 AWG	10	-65 ░C	105 ░C	0.015 mm	Housing for Female Contacts	UL94 V-0	2
TE Connectivity AMP Connectors 2-88179-1	300 VDC	Detent Lock	Black	Contacts Not Included	0.069 "	1.75 mm	0.045 in	1.14 mm	1.5 A	Positions Stamped	Polyamide (PA), Nylon, Glass Filled	FFC, Discrete Wire	2.54 mm	0.1 in	32 AWG	22 AWG	40	-65 ░C	105 ░C	0.015 mm	Housing for Female Contacts	UL94 V-0	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.74
		10	$ 2.27
		25	$ 2.10
		50	$ 1.99
		100	$ 1.88
		250	$ 1.74
		500	$ 1.65
		1000	$ 1.56
		2500	$ 1.45

Description

General part information

88179 Series

Housing FFC, Discrete Wire Housing for Female Contacts Connector Detent Lock 12Pos 0.100" (2.54mm)
