6EP44387FC003DX0

Active

Siemens

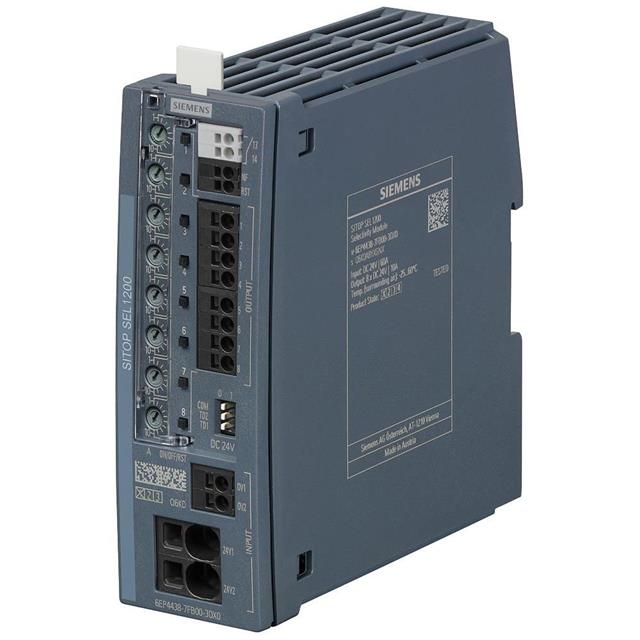

SITOP SEL1200/8X2-10A/EX

Search across all available documentation for this part.

Active

Siemens

SITOP SEL1200/8X2-10A/EX

Technical Specifications

Parameters and characteristics for this part

Specification	6EP44387FC003DX0

Applications	ITE (Commercial)
Approval Agency	CE, EAC
Current - Output (Max)	10 A
DC Voltage - Input (Max) [Max]	30 V
DC Voltage - Input (Min) [Min]	20.4 V
Efficiency	98 %
Features	Remote On/Off, Adjustable Output
Input Type	DC
Number of Outputs	8
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Size / Dimension [x]	4.92 in
Size / Dimension [x]	125 mm
Size / Dimension [y]	45 mm
Size / Dimension [y]	1.77 "
Size / Dimension [z]	5.31 "
Size / Dimension [z]	135 mm
Standard Number	60950-1
Voltage - Output 1	3 V
Voltage - Output 2	3 V
Voltage - Output 3	3 V
Voltage - Output 4	3 V
Voltage - Output 5	3 V
Voltage - Output 6	3 V

Part	Voltage - Output 2	DC Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 5 [custom]	Current - Output (Max)	Features	Standard Number	Voltage - Output 3	Voltage - Output 6	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Efficiency	Voltage - Output 4	Input Type	Approval Agency	DC Voltage - Input (Min) [Min]	Applications	Voltage - Output 5	Current - Output (Max) [Max]
Siemens 6EP44387EC003DX0	24 V	30 V	45 mm	1.77 "	5.31 "	4.92 in	135 mm	125 mm	24 V	10 A	Adjustable Output Remote On/Off	60950-1	24 V	24 V	24 V	70 °C	-25 °C	8	98 %	24 V	DC	CE EAC	20.4 V	ITE (Commercial)
Siemens 6EP44387FC003DX0	3 V	30 V	45 mm	1.77 "	5.31 "	4.92 in	135 mm	125 mm		10 A	Adjustable Output Remote On/Off	60950-1	3 V	3 V	3 V	70 °C	-25 °C	8	98 %	3 V	DC	CE EAC	20.4 V	ITE (Commercial)	3 V
Siemens 6EP44387FB003DX0		30 V	45 mm	1.77 "	5.31 "	4.92 in	135 mm	125 mm			Adjustable Output IP20	60950-1 UL 508			23.8 V	70 °C	-25 °C	1	98 %		DC	CB cCSAus CE CSA cUL cULus UL	20.4 V	Hazardous Locations Industrial ITE (Commercial)		10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 409.00
