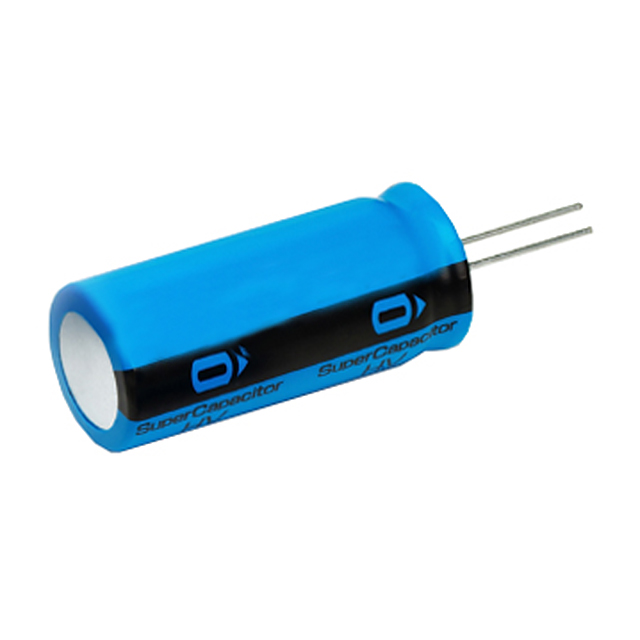

HVZ0E207NF-LT

Active

KEMET

ELECTRIC DOUBLE LAYER CAPACITOR, 2.7V, 200000000UF

Search across all available documentation for this part.

Active

KEMET

ELECTRIC DOUBLE LAYER CAPACITOR, 2.7V, 200000000UF

Technical Specifications

Parameters and characteristics for this part

Specification	HVZ0E207NF-LT

Capacitance	200 F
ESR (Equivalent Series Resistance)	30 mOhm
Height - Seated (Max) [Max] [z]	2.047 in
Height - Seated (Max) [Max] [z]	52 mm
Lead Spacing	0.394 in
Lead Spacing	10 mm
Mounting Type	Through Hole
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can - Snap-In
Size / Dimension [diameter]	1.378 in
Size / Dimension [diameter]	35 mm
Termination	PC Pins
Tolerance	30 %
Voltage - Rated	2.7 VDC

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Lead Spacing	Lead Spacing	Package / Case	Voltage - Rated	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Mounting Type	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET HVZ0E506NF	0.709 "	18 mm	30 %	7.5 mm	0.295 in	Radial Can	2.5 V	50 F	42 mm	1.654 in	-25 °C	60 °C	PC Pins	Through Hole	50 mOhm
KEMET HVZ0E207NF-LT	1.378 in	35 mm	30 %	10 mm	0.394 in	Radial Can - Snap-In	2.7 VDC	200 F			-25 °C	60 °C	PC Pins	Through Hole	30 mOhm	2.047 in	52 mm
KEMET HVZ0E107NF-LT	0.984 "	25 mm	30 %	10 mm	0.394 in	Radial Can - Snap-In	2.7 VDC	100 F			-25 °C	60 °C	PC Pins	Through Hole	30 mOhm	2.047 in	52 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 40.89
Newark	Each	100	$ 41.25

General part information

200 F (EDLC) Supercapacitor 2.7 V Radial, Can - Snap-In 30mOhm @ 1kHz
