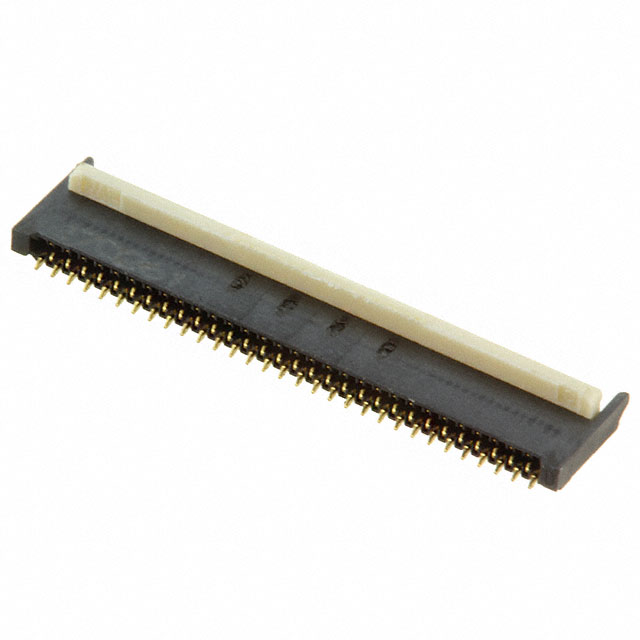

FR02C061JA1-R5000 - FR02C061JA1-R5000

FR02C061JA1-R5000

Active
JAE Electronics

CARD EDGE CONNECTOR, 61 CONTACT(S), 2 ROW(S), RIGHT ANGLE, 0.016 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, BLACK INSULATOR

Deep-Dive with AI

Search across all available documentation for this part.

FR02C061JA1-R5000 - FR02C061JA1-R5000

FR02C061JA1-R5000

Active
JAE Electronics

CARD EDGE CONNECTOR, 61 CONTACT(S), 2 ROW(S), RIGHT ANGLE, 0.016 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, BLACK INSULATOR

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

SpecificationFR02C061JA1-R5000
Actuator ColorNatural
Actuator MaterialPlastic
Cable End TypeTabbed or Tapered
Connector/Contact TypeContacts, Top and Bottom
Contact FinishGold
Contact MaterialPhosphor Bronze
Current Rating (Amps)0.25 A
FeaturesLow Insertion Force (LIF)
FFC, FCB Thickness0.2 mm
Flat Flex TypeFPC
Height Above Board [z]0.032 "
Height Above Board [z]0.81 mm
Housing ColorBlack
Housing MaterialPlastic
Locking FeatureFlip Lock, Backlock
Mounting TypeSurface Mount, Right Angle
Number of Positions61
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
Pitch [x]0.2 mm
Pitch [x]0.008 in
TerminationSolder
Voltage Rating50 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 2.60
10$ 2.26
25$ 2.17
50$ 2.12
100$ 2.02
250$ 1.83
500$ 1.69
1000$ 1.44
2500$ 1.35
Digi-Reel® 1$ 2.60
10$ 2.26
25$ 2.17
50$ 2.12
100$ 2.02
250$ 1.83
500$ 1.69
1000$ 1.44
2500$ 1.35
Tape & Reel (TR) 5000$ 1.28

Description

General part information

FR02C061 Series

61 Position FPC Connector Contacts, Top and Bottom 0.008" (0.20mm) Surface Mount, Right Angle
