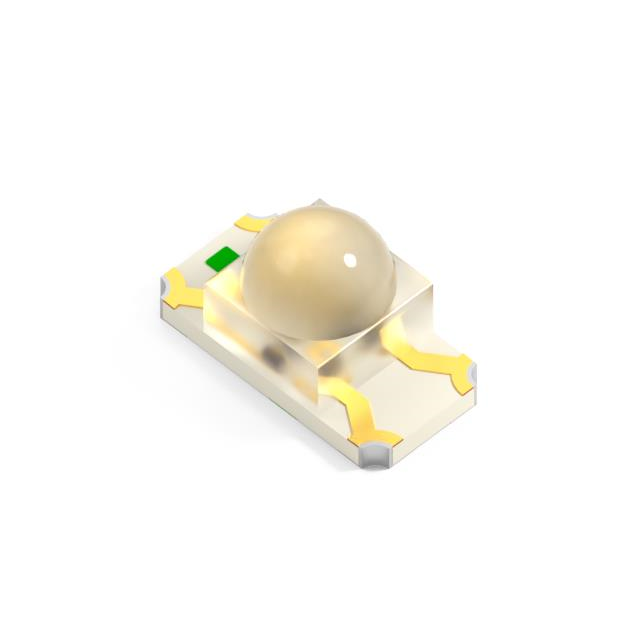

XZMDKDGK55W-8RT

Active

SunLED

LED GREEN/RED CLEAR CHIP SMD

Search across all available documentation for this part.

Active

SunLED

LED GREEN/RED CLEAR CHIP SMD

Technical Specifications

Parameters and characteristics for this part

Specification	XZMDKDGK55W-8RT

Color	Red, Green
Configuration	Independent
Current - Test	20 mA, 20 mA
Height (Max) [Max] [z]	2 mm
Lens Color	Colorless
Lens Size [diameter]	1.6 mm
Lens Style	Round with Domed Top
Lens Transparency	Clear
Millicandela Rating	1495mcd Red, 647mcd Green
Mounting Type	Surface Mount, Bottom Entry
Package / Case	1206 (3216 Metric)
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	1.6 mm
Supplier Device Package	Chip LED
Viewing Angle	30 °
Voltage - Forward (Vf) (Typ) [custom]	3.3 V
Voltage - Forward (Vf) (Typ) [custom]	1.95 V
Wavelength - Dominant [custom]	525 nm
Wavelength - Dominant [custom]	630 nm
Wavelength - Peak	645 nm, 515 nm

Part	Lens Size [diameter]	Wavelength - Peak	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Current - Test	Supplier Device Package	Configuration	Size / Dimension [y]	Size / Dimension [x]	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Color	Lens Transparency	Height (Max) [Max] [z]	Package / Case	Viewing Angle	Color	Lens Style	Mounting Type	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Lens Size [y]	Lens Size [x]	Millicandela Rating
SunLED XZMDKDGK55W-8	1.6 mm	515 nm 645 nm	3.3 V	1.95 V	20 mA 20 mA	4-SMD	Independent	1.6 mm	3.2 mm	397 mcd	647 mcd	Colorless	Clear	1.8 mm	1206 (3216 Metric)	30 °	Green Red	Round with Domed Top	Surface Mount	525 nm	630 nm
SunLED XZMDKDGK55W-4		515 nm 645 nm	3.3 V	1.95 V	20 mA 20 mA	2-SMD	Bidirectional	1.6 mm	3.2 mm	69 mcd	379 mcd	Colorless	Clear	1.3 mm	1206 (3216 Metric)	140 °	Green Red	Rectangle with Flat Top	Surface Mount	525 nm	630 nm	1.6 mm	2 mm
SunLED XZMDKDGK55W-8RT	1.6 mm	515 nm 645 nm	3.3 V	1.95 V	20 mA 20 mA	Chip LED	Independent	1.6 mm	3.2 mm			Colorless	Clear	2 mm	1206 (3216 Metric)	30 °	Green Red	Round with Domed Top	Surface Mount Bottom Entry	525 nm	630 nm			1495mcd Red 647mcd Green

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green, Red 525nm Green, 630nm Red LED Indication - Discrete 3.3V Green, 1.95V Red 1206 (3216 Metric)
