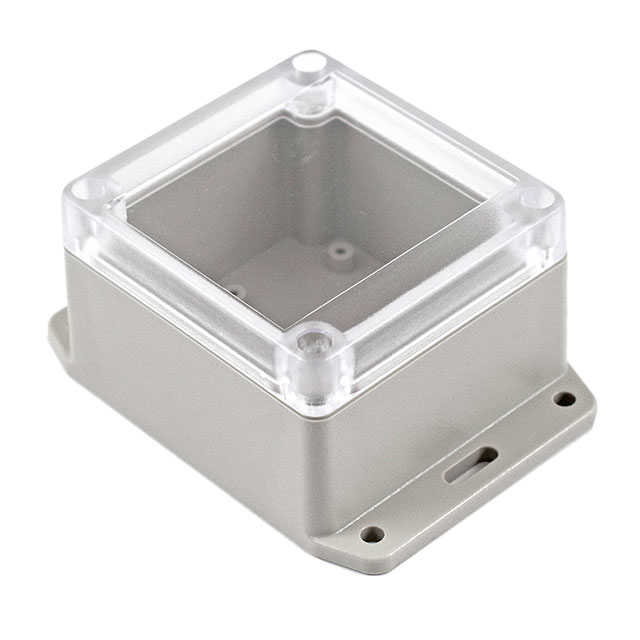

RP1065BFC
ActiveHammond Manufacturing
BOX ABS GRAY/CLR 4.53"L X 3.28"W
Deep-Dive with AI
Search across all available documentation for this part.
RP1065BFC
ActiveHammond Manufacturing
BOX ABS GRAY/CLR 4.53"L X 3.28"W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RP1065BFC |
|---|---|
| Area (L x W) | 14.9 in˛ |
| Area (L x W) | 96 cm˛ |
| Color | Gray, Clear Cover/Door |
| Container Type | Box |
| Design | Cover Included |
| Height [z] | 2.17 in |
| Height [z] | 55.12 mm |
| Material | ABS |
| Material Flammability Rating | UL94 HB |
| Size / Dimension [x] | 115.06 mm |
| Size / Dimension [x] | 4.53 " |
| Size / Dimension [y] | 3.28 in |
| Size / Dimension [y] | 83.31 mm |
| Thickness | 2.03 mm |
| Thickness | 0.08 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 10.58 | |
| 5 | $ 10.29 | |||
| 10 | $ 10.00 | |||
| 25 | $ 9.43 | |||
| 50 | $ 9.15 | |||
| 100 | $ 8.57 | |||
| 250 | $ 8.00 | |||
| 500 | $ 7.72 | |||
| 1000 | $ 7.43 | |||
Description
General part information
RP1065 Series
Box ABS Gray, Clear Cover/Door Cover Included 4.530" L x 3.280" W (115.06mm x 83.31mm) X 2.170" (55.12mm)
Documents
Technical documentation and resources
No documents available
