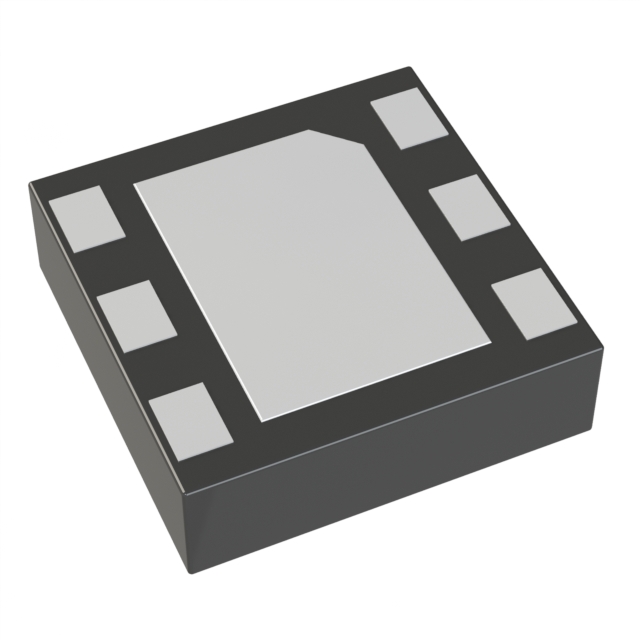

XC6804B4D14R-G

Active

Torex Semiconductor Ltd

IC BATT CHG LI-ION 1CELL 6USPEL

Integrated Circuits (ICs)

XC6804B4D14R-G

Active

Torex Semiconductor Ltd

IC BATT CHG LI-ION 1CELL 6USPEL

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XC6804B4D14R-G

Battery Chemistry	Polymer, Lithium Ion
Battery Pack Voltage	4.2 V
Charge Current - Max	800 mA
Current - Charging	Constant, Programmable
Fault Protection	Over Current, Over Temperature, Over Voltage, Reverse Current
Mounting Type	Surface Mount
Number of Cells	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	6-XDFN Exposed Pad
Package Length	1.8 mm
Package Name	6-USPEL
Package Width	2 mm
Programmable Features	Current
Voltage - Supply (Max)	6 V

XC6804 Series

Part	Voltage - Supply (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Package Length	Package Name	Package Width	Package / Case	Mounting Type	Programmable Features	Number of Cells	Battery Chemistry	Battery Pack Voltage	Fault Protection	Current - Charging	Charge Current - Max	Package Features
Torex Semiconductor Ltd XC6804B3E14R-G	6 V	85 °C	-40 °C	1.8 mm	6-USPEL	2 mm	6-XDFN Exposed Pad	Surface Mount	Current	1	Lithium Ion Polymer	4.2 V	Over Current Over Temperature Over Voltage Reverse Current	Constant Programmable	800 mA
Torex Semiconductor Ltd XC6804A2D1QR-G	6 V	85 °C	-40 °C	0.154 in	8-SOIC 8-SOPFD	3.9 mm		Surface Mount	Current	1	Lithium Ion Polymer	4.2 V	Over Current Over Temperature Over Voltage Reverse Current	Constant Programmable	800 mA	Exposed Pad
Torex Semiconductor Ltd XC6804A2E14R-G	6 V	85 °C	-40 °C	1.8 mm	6-USPEL	2 mm	6-XDFN Exposed Pad	Surface Mount	Current	1	Lithium Ion Polymer	4.2 V	Over Current Over Temperature Over Voltage Reverse Current	Constant Programmable	800 mA
Torex Semiconductor Ltd XC6804B4E1QR-G	6 V	85 °C	-40 °C	0.154 in	8-SOIC 8-SOPFD	3.9 mm		Surface Mount	Current	1	Lithium Ion Polymer	4.2 V	Over Current Over Temperature Over Voltage Reverse Current	Constant Programmable	800 mA	Exposed Pad
Torex Semiconductor Ltd XC6804B3D14R-G	6 V	85 °C	-40 °C	1.8 mm	6-USPEL	2 mm	6-XDFN Exposed Pad	Surface Mount	Current	1	Lithium Ion Polymer	4.2 V	Over Current Over Temperature Over Voltage Reverse Current	Constant Programmable	800 mA
Torex Semiconductor Ltd XC6804A4E14R-G	6 V	85 °C	-40 °C	1.8 mm	6-USPEL	2 mm	6-XDFN Exposed Pad	Surface Mount	Current	1	Lithium Ion Polymer	4.2 V	Over Current Over Temperature Over Voltage	Constant Programmable	800 mA
Torex Semiconductor Ltd XC6804B2E1QR-G	6 V	85 °C	-40 °C	0.154 in	8-SOIC 8-SOPFD	3.9 mm		Surface Mount	Current	1	Lithium Ion Polymer	4.2 V	Over Current Over Temperature Over Voltage Reverse Current	Constant Programmable	800 mA	Exposed Pad
Torex Semiconductor Ltd XC6804A2D14R-G	6 V	85 °C	-40 °C	1.8 mm	6-USPEL	2 mm	6-XDFN Exposed Pad	Surface Mount	Current	1	Lithium Ion Polymer	4.2 V	Over Current Over Temperature Over Voltage Reverse Current	Constant Programmable	800 mA
Torex Semiconductor Ltd XC6804B4D14R-G	6 V	85 °C	-40 °C	1.8 mm	6-USPEL	2 mm	6-XDFN Exposed Pad	Surface Mount	Current	1	Lithium Ion Polymer	4.2 V	Over Current Over Temperature Over Voltage Reverse Current	Constant Programmable	800 mA
Torex Semiconductor Ltd XC6804B3E1QR-G	6 V	85 °C	-40 °C	0.154 in	8-SOIC 8-SOPFD	3.9 mm		Surface Mount	Current	1	Lithium Ion Polymer	4.2 V	Over Current Over Temperature Over Voltage Reverse Current	Constant Programmable	800 mA	Exposed Pad

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$	Updated

Digikey	Tape & Reel (TR)	3000	$ 0.79	1w

CAD

3D models and CAD resources for this part

Description

General part information

XC6804 Series

Charger IC Lithium Ion/Polymer 6-USPEL (1.8x2)

Documents

Technical documentation and resources

XC6804B4D14R-G | Datasheet
