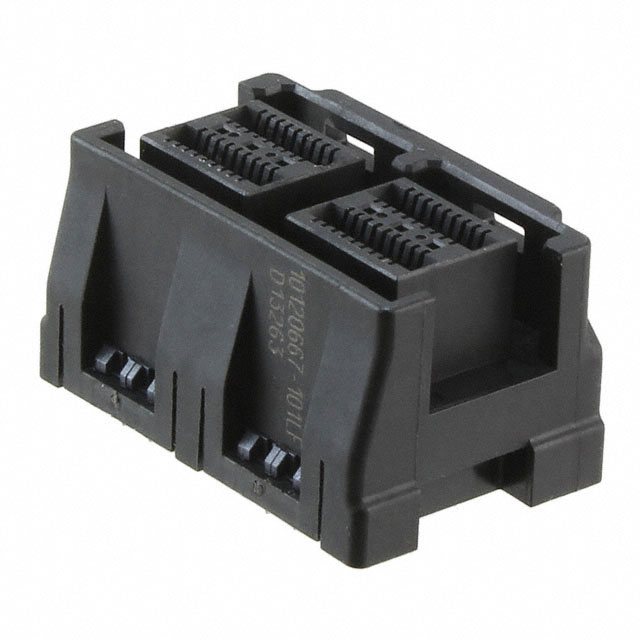

Specification	10120667-101LF

Connector Pin Configuration (Columns)	2 pins
Connector Pin Configuration (Rows)	1 pins
Connector Style	Receptacle
Connector Type	SAS, Mini HD
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	Board Guide
Mounting Type	Through Hole
Number of Positions (Columns)	16
Number of Positions (Rows)	2
Number of Positions (Total)	32
Termination	Press-Fit

10120667 Series

Part	Connector Type	Mounting Type	Number of Positions (Total)	Number of Positions (Rows)	Number of Positions (Columns)	Contact Finish Thickness	Connector Style	Connector Pin Configuration (Columns)	Connector Pin Configuration (Rows)	Features	Contact Finish	Termination
Amphenol ICC (FCI) 10120667-101LF	Mini HD SAS	Through Hole	32	2	16	30 µin	Receptacle	2 pins	1 pins	Board Guide	Gold	Press-Fit
