Q-1T0710003108i

Active

Amphenol Custom Cable

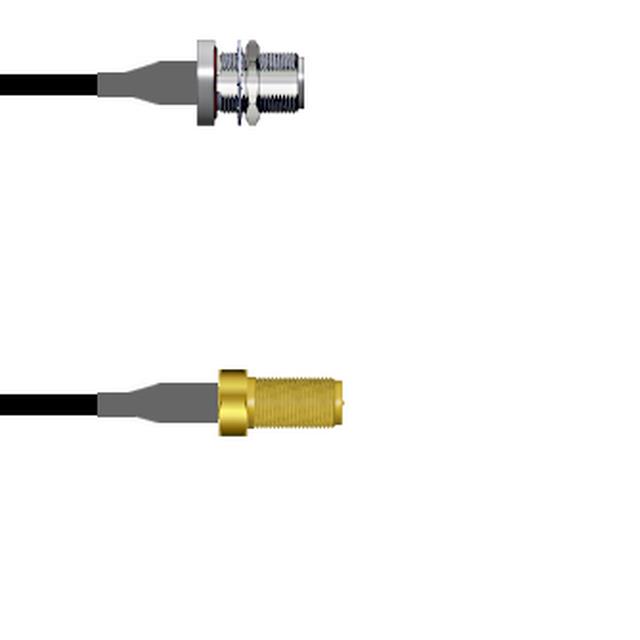

CBL ASSY RPSMA-NTYPE JCK-JCK 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1T0710003108i

Active

Amphenol Custom Cable

CBL ASSY RPSMA-NTYPE JCK-JCK 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1T0710003108i

1st Connector	RP-SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	RP-SMA to N-Type

Q-1T0710 Series

Part	Overall Impedance	2nd Connector Mounting Type	Frequency - Max [Max]	2nd Connector Mounting Feature	1st Contact Gender	Style	1st Connector	2nd Contact Gender	Length	Length	Length	Cable Type	2nd Connector	Color	1st Connector Mounting Type	Features	Length [x]	Length [x]
Amphenol Custom Cable Q-1T0710005072i	50 Ohms	Panel Mount	11 GHz	Bulkhead - Front Side Nut	Male	RP-SMA to N-Type	RP-SMA Jack	Female	6 ft	72 in	1.8 m	RG-316	N-Type Jack	Copper	Free Hanging (In-Line)	Shielded
Amphenol Custom Cable Q-1T0710003048i	50 Ohms	Panel Mount	11 GHz	Bulkhead - Front Side Nut	Male	RP-SMA to N-Type	RP-SMA Jack	Female	4 ft	48 in	1200 mm	RG-174	N-Type Jack	Black	Free Hanging (In-Line)	Shielded
Amphenol Custom Cable Q-1T07100051.5M	50 Ohms	Panel Mount	11 GHz	Bulkhead - Front Side Nut	Male	RP-SMA to N-Type	RP-SMA Jack	Female	4.9 ft	59.1 in	1.5 m	RG-316	N-Type Jack	Copper	Free Hanging (In-Line)	Shielded
Amphenol Custom Cable Q-1T0710005003i	50 Ohms	Panel Mount	11 GHz	Bulkhead - Front Side Nut	Male	RP-SMA to N-Type	RP-SMA Jack	Female		3 in	76.2 mm	RG-316	N-Type Jack	Copper	Free Hanging (In-Line)	Shielded
Amphenol Custom Cable Q-1T0710003002M	50 Ohms	Panel Mount	11 GHz	Bulkhead - Front Side Nut	Male	RP-SMA to N-Type	RP-SMA Jack	Female	6.6 ft	78.7 in	2 m	RG-174	N-Type Jack	Black	Free Hanging (In-Line)	Shielded
Amphenol Custom Cable Q-1T0710003003M	50 Ohms	Panel Mount	11 GHz	Bulkhead - Front Side Nut	Male	RP-SMA to N-Type	RP-SMA Jack	Female	9.8 '	118.1 in	3 m	RG-174	N-Type Jack	Black	Free Hanging (In-Line)	Shielded
Amphenol Custom Cable Q-1T0710005036i	50 Ohms	Panel Mount	11 GHz	Bulkhead - Front Side Nut	Male	RP-SMA to N-Type	RP-SMA Jack	Female		36 in	91.44 cm	RG-316	N-Type Jack	Copper	Free Hanging (In-Line)	Shielded
Amphenol Custom Cable Q-1T0710003018i	50 Ohms	Panel Mount	11 GHz	Bulkhead - Front Side Nut	Male	RP-SMA to N-Type	RP-SMA Jack	Female				RG-174	N-Type Jack	Black	Free Hanging (In-Line)	Shielded	457.2 mm	457.2 mm
Amphenol Custom Cable Q-1T0710005012i	50 Ohms	Panel Mount	11 GHz	Bulkhead - Front Side Nut	Male	RP-SMA to N-Type	RP-SMA Jack	Female		12 "	304.8 mm	RG-316	N-Type Jack	Copper	Free Hanging (In-Line)	Shielded
Amphenol Custom Cable Q-1T0710003108i	50 Ohms	Panel Mount	11 GHz	Bulkhead - Front Side Nut	Male	RP-SMA to N-Type	RP-SMA Jack	Female	9 ft	108 in	2.7 m	RG-174	N-Type Jack	Black	Free Hanging (In-Line)	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 77.12
		25	$ 75.63
		50	$ 74.14
		100	$ 72.65
		250	$ 71.15

Description

General part information

Q-1T0710 Series

Cable Assembly Coaxial RP-SMA to N-Type RG-174 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
