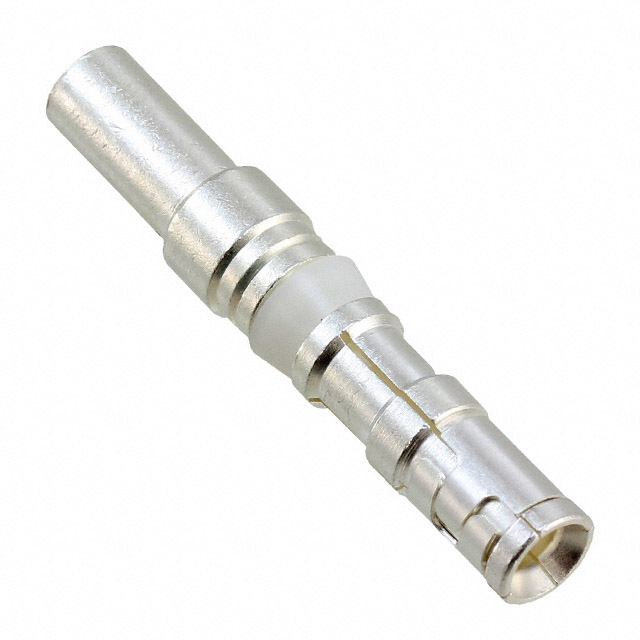

Specification	CONT-JL05-08S-C1-10

Contact Finish	Silver
Contact Material	Copper Alloy
Contact Size	8
Contact Termination	Crimp
Contact Type	Socket
Type	Signal, Machined
Wire Gauge or Range - AWG (Max)	10 AWG
Wire Gauge or Range - AWG (Min)	8 AWG
Wire Gauge or Range - mm² (Maximum)	8 mm²
Wire Gauge or Range - mm² (Minimum)	5.5 mm²

CONT-JL0 Series

Part	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Contact Material	Type	Contact Size	Contact Termination	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Contact Type	Contact Finish
JAE Electronics CONT-JL05-08S-C2-A528G-H	3.5 mm²	5.5 mm²	Copper Alloy	Machined Signal	8	Crimp	12 AWG	10 AWG	Socket
JAE Electronics CONT-JL05-12P-C1-10	1.25 mm²	3.5 mm²	Copper Alloy	Machined Signal	12	Crimp	16 AWG	12 AWG	Pin	Silver
JAE Electronics CONT-JL05-08P-C2-10	3.5 mm²	5.5 mm²	Copper Alloy	Machined Signal	8	Crimp	12 AWG	10 AWG	Pin	Silver
JAE Electronics CONT-JL05-16S-C2-A528G-H	0.5 mm²	1.25 mm²	Copper Alloy	Machined Signal	16 S	Crimp	20 AWG	16 AWG	Socket
JAE Electronics CONT-JL05-12S-C1-10	1.25 mm²	3.5 mm²	Copper Alloy	Machined Signal	12	Crimp	16 AWG	12 AWG	Socket	Silver
JAE Electronics CONT-JL05-08S-C1-10	5.5 mm²	8 mm²	Copper Alloy	Machined Signal	8	Crimp	10 AWG	8 AWG	Socket	Silver
JAE Electronics CONT-JL05-08S-C2-10	3.5 mm²	5.5 mm²	Copper Alloy	Machined Signal	8	Crimp	12 AWG	10 AWG	Socket	Silver
JAE Electronics CONT-JL05-08P-C1-10	5.5 mm²	8 mm²	Copper Alloy	Machined Signal	8	Crimp	10 AWG	8 AWG	Pin	Silver
