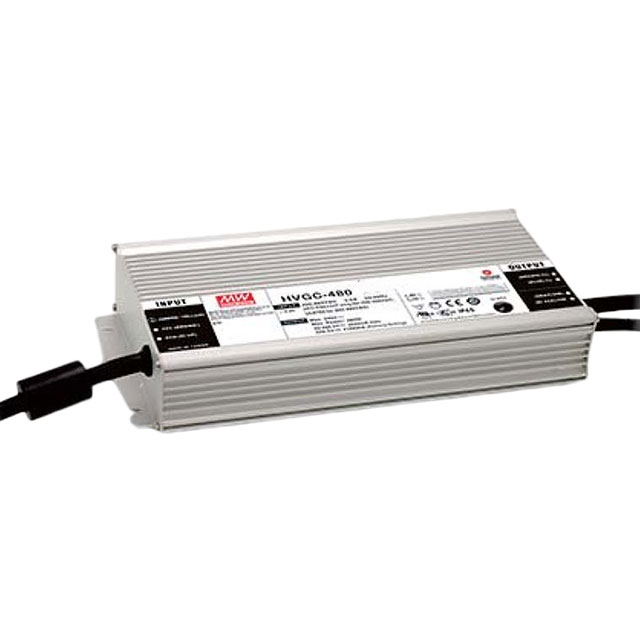

Specification	HVGC-480-M-AB

Approval Agency	CB, ENEC, RCM, CE, FCC, cURus, CCC, EAC
Current - Output (Max)	2.1 A
Dimming	PWM
Efficiency	94.5 %
Features	SCP, OTP, OVP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	90 °C
Operating Temperature (Min)	-40 °C
Power (Watts)	480 W
Ratings	IP67
Size / Dimension Height	1.72 in
Size / Dimension Length	9.26 in
Size / Dimension Width	4.92 in
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current
Voltage - Input (Max)	528 VAC
Voltage - Input (Min)	180 V
Voltage - Isolation	3750 VDC
Voltage - Output (Max)	228.5 V
Voltage - Output (Min)	92 V

HVGC-480 Series

Part	Termination Style	Ratings	Power (Watts)	Voltage - Isolation	Dimming	Current - Output (Max)	Number of Outputs	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Voltage - Output (Max)	Voltage - Output (Min)	Efficiency	Voltage - Input (Min)	Operating Temperature (Max)	Operating Temperature (Min)	Type	Voltage - Input (Max)	Topology	Approval Agency	Features	Mounting Type
MEAN WELL USA Inc. HVGC-480-L-AB	Wire Leads	IP67	480 W	3750 VDC	PWM	1.4 A	1	1.72 in	9.26 in	4.92 in	343 V	137 V	94.5 %	180 V	90 °C	-40 °C	Constant Current	528 VAC	AC DC Converter	CB CCC CE cURus EAC ENEC FCC RCM	OTP OVP SCP	Chassis Mount
MEAN WELL USA Inc. HVGC-480-M-AB	Wire Leads	IP67	480 W	3750 VDC	PWM	2.1 A	1	1.72 in	9.26 in	4.92 in	228.5 V	92 V	94.5 %	180 V	90 °C	-40 °C	Constant Current	528 VAC	AC DC Converter	CB CCC CE cURus EAC ENEC FCC RCM	OTP OVP SCP	Chassis Mount
MEAN WELL USA Inc. HVGC-480-H-AB	Wire Leads	IP67	480 W	3750 VDC	PWM	2.8 A	1	1.72 in	9.26 in	4.92 in	171.5 V	68 V	94.5 %	180 V	90 °C	-40 °C	Constant Current	528 VAC	AC DC Converter	CB CCC CE cURus EAC ENEC FCC RCM	OTP OVP SCP	Chassis Mount
