1217156-1
ActiveTE Connectivity AMP Connectors

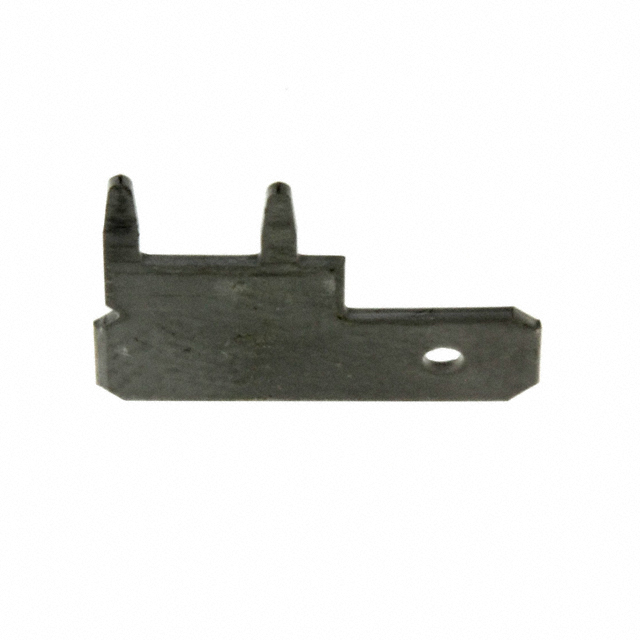

CONN QC TAB 0.187 SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1217156-1
ActiveTE Connectivity AMP Connectors
CONN QC TAB 0.187 SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217156-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Male |
| Insulation | Non-Insulated |
| Mounting Type | Through Hole, Right Angle |
| Tab Length | 6.35 mm |
| Tab Length | 0.25 in |
| Tab Thickness | 0.02 " |
| Tab Thickness | 0.51 mm |
| Tab Width | 4.75 mm |
| Tab Width | 0.187 in |
| Terminal Type | Angled - 90° |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.33 | |
| 10 | $ 0.30 | |||
| 100 | $ 0.25 | |||
| 1000 | $ 0.19 | |||
| 5000 | $ 0.17 | |||
| 10000 | $ 0.16 | |||
1217156 Series
CONN QC TAB 0.187 SOLDER
| Part | Gender | Terminal Type | Insulation | Contact Material | Tab Width | Tab Width | Tab Length | Tab Length | Mounting Type | Contact Finish | Termination | Tab Thickness | Tab Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217156-1 | Male | Angled - 90° | Non-Insulated | Brass | 4.75 mm | 0.187 in | 6.35 mm | 0.25 in | Through Hole, Right Angle | Tin | Solder | 0.02 " | 0.51 mm |
Description
General part information
1217156 Series
0.187" (4.75mm) Quick Connect Male Solder Connector Non-Insulated
