76250ENC

Active

Murata Power Solutions Inc.

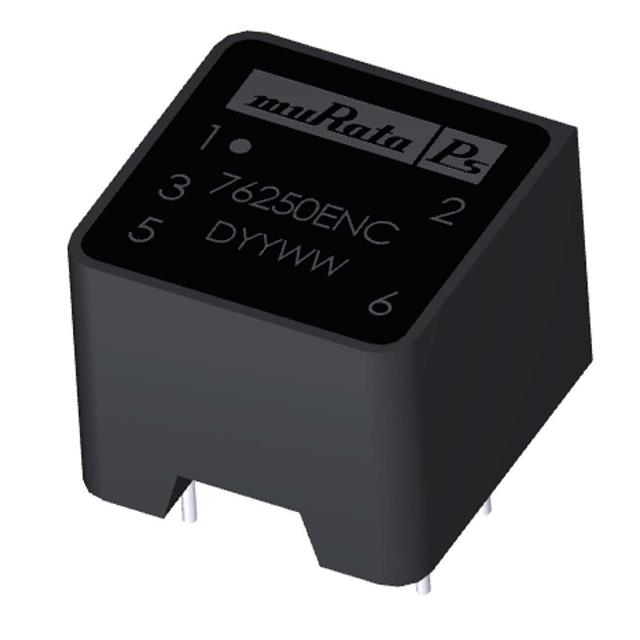

TRANSFORMER, CONVERTER, 6000V, THT, 1CT:1 TURN RATIO, MAX250/251/253 COMPATIBLE

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

TRANSFORMER, CONVERTER, 6000V, THT, 1CT:1 TURN RATIO, MAX250/251/253 COMPATIBLE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	76250ENC	762 Series

	-	-
Height - Seated (Max) [Max] [z]	0.502 in	0.502 in
Height - Seated (Max) [Max] [z]	12.75 mm	12.75 mm
Inductance	2 mH	2 mH
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Size / Dimension [x]	0.591 in	0.591 in
Size / Dimension [x]	15 mm	15 mm
Size / Dimension [y]	15 mm	15 mm
Size / Dimension [y]	0.591 in	0.591 in
Transformer Type	Isolation and Data Interface (Encapsulated)	Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary	1CT:1	1CT:1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

TRANSFORMER, CONVERTER, 6000V, THT, 1CT:1 TURN RATIO, MAX250/251/253 COMPATIBLE

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Inductance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Turns Ratio - Primary:Secondary	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Transformer Type
Murata Power Solutions Inc. 76250ENC	0.591 in	15 mm	15 mm	0.591 in	2 mH	0.502 in	12.75 mm	1CT:1	70 °C	0 °C	Through Hole	Isolation and Data Interface (Encapsulated)
Murata Power Solutions Inc. 76250ENC

General part information

2mH Isolation and Data Interface (Encapsulated) Pulse Transformer 1CT:1 Through Hole
