770602-9

Obsolete

TE Connectivity AMP Connectors

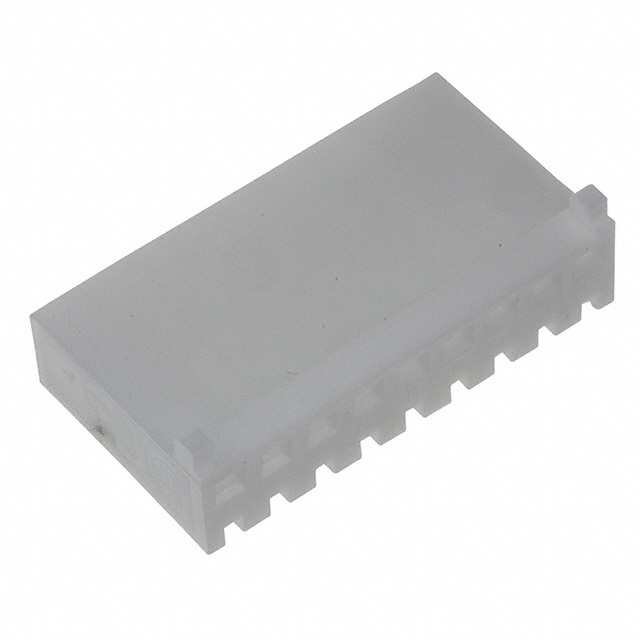

CONN RCPT HSG 9POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

770602-9

Obsolete

TE Connectivity AMP Connectors

CONN RCPT HSG 9POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

770602 Series

9 Rectangular Connectors - Housings Receptacle Natural 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	770602-9	770602 Series

Color	Natural	Natural
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Locking Ramp	Locking Ramp
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	9	2 - 26
Number of Positions	-	16
Number of Rows	1	1
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in

770602 Series

CONN RCPT HSG 12POS 2.54MM

Part	Number of Rows	Pitch [x]	Pitch [x]	Contact Termination	Fastening Type	Note	Connector Type	Number of Positions	Color	Mounting Type	Contact Type	Number of Positions
TE Connectivity AMP Connectors 1-770602-2	1	2.54 mm	0.1 in	Crimp	Locking Ramp	Contacts Not Included	Receptacle	12	Natural	Free Hanging (In-Line)	Female Socket
TE Connectivity AMP Connectors 770602-3	1	2.54 mm	0.1 in	Crimp	Locking Ramp	Contacts Not Included	Receptacle		Natural	Free Hanging (In-Line)	Female Socket
TE Connectivity AMP Connectors 2-770602-4	1	2.54 mm	0.1 in	Crimp	Locking Ramp	Contacts Not Included	Receptacle	24	Natural	Free Hanging (In-Line)	Female Socket
TE Connectivity AMP Connectors 1-770602-6	1	2.54 mm	0.1 in	Crimp	Locking Ramp	Contacts Not Included	Receptacle		Natural	Free Hanging (In-Line)	Female Socket	16
TE Connectivity AMP Connectors 1-770602-3	1	2.54 mm	0.1 in	Crimp	Locking Ramp	Contacts Not Included	Receptacle	13	Natural	Free Hanging (In-Line)	Female Socket
TE Connectivity AMP Connectors 2-770602-5	1	2.54 mm	0.1 in	Crimp	Locking Ramp	Contacts Not Included	Receptacle		Natural	Free Hanging (In-Line)	Female Socket
TE Connectivity AMP Connectors 770602-8	1	2.54 mm	0.1 in	Crimp	Locking Ramp	Contacts Not Included	Receptacle	8	Natural	Free Hanging (In-Line)	Female Socket
TE Connectivity AMP Connectors 2-770602-3	1	2.54 mm	0.1 in	Crimp	Locking Ramp	Contacts Not Included	Receptacle	23	Natural	Free Hanging (In-Line)	Female Socket
TE Connectivity AMP Connectors 2-770602-6	1	2.54 mm	0.1 in	Crimp	Locking Ramp	Contacts Not Included	Receptacle	26	Natural	Free Hanging (In-Line)	Female Socket
TE Connectivity AMP Connectors 770602-9	1	2.54 mm	0.1 in	Crimp	Locking Ramp	Contacts Not Included	Receptacle	9	Natural	Free Hanging (In-Line)	Female Socket
