RFB-1724-Q

Active

RF Industries

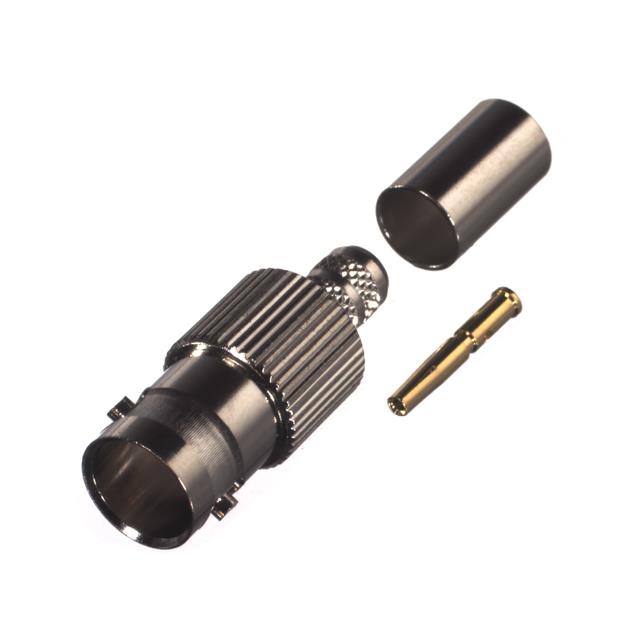

BNC FEMALE CRIMP; 75 OHMS

Search across all available documentation for this part.

Active

RF Industries

BNC FEMALE CRIMP; 75 OHMS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RFB-1724-Q	RFB-1724 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	Belden 1694A, RG-6	Belden 1694A, RG-6, 179A, 187, 187A, 179, RG-161
Center Contact Material	Phosphor Bronze	Phosphor Bronze
Center Contact Plating	Gold	Gold
Connector Style	BNC	BNC
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Crimp	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	2 GHz	2 GHz
Housing Color	Silver	Silver
Impedance	75 Ohms	75 Ohms
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Crimp	Crimp
Voltage Rating	500 V	500 V

BNC FEMALE CRIMP; 75 OHMS

Part	Number of Ports	Mounting Type	Dielectric Material	Cable Group	Body Finish	Fastening Type	Center Contact Material	Voltage Rating	Shield Termination	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Termination	Frequency - Max [Max]	Housing Color	Impedance	Center Contact Plating	Connector Style
RF Industries RFB-1724-Q	1	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Belden 1694A, RG-6	Nickel	Bayonet Lock	Phosphor Bronze	500 V	Crimp	Brass	-65 ░C	165 °C	Female Socket, Jack	Crimp	2 GHz	Silver	75 Ohms	Gold	BNC
RF Industries RFB-1724-S	1	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	179, 179A, 187, 187A, RG-161	Nickel	Bayonet Lock	Phosphor Bronze	500 V	Crimp	Brass	-65 ░C	165 °C	Female Socket, Jack	Crimp	2 GHz	Silver	75 Ohms	Gold	BNC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 75 Ohms Free Hanging (In-Line) Crimp
