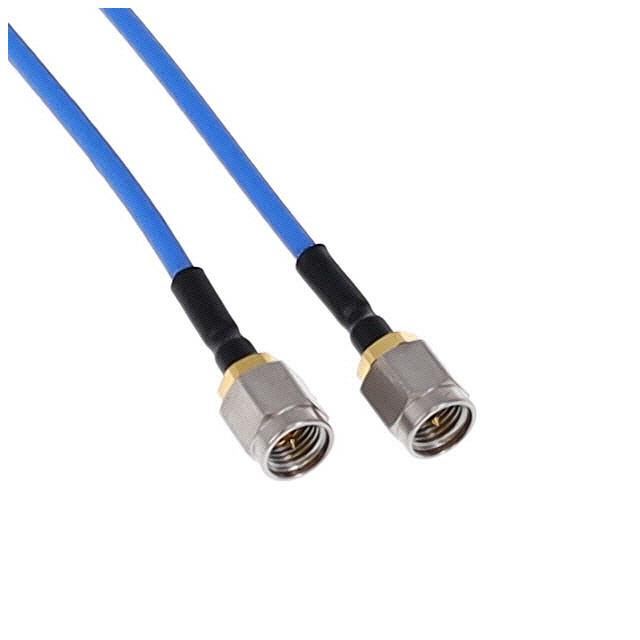

FL086-4KM+

Active

MINI-CIRCUITS

CBL ASSY 2.92MM PLUG TO PLUG 4"

Search across all available documentation for this part.

Active

MINI-CIRCUITS

CBL ASSY 2.92MM PLUG TO PLUG 4"

Technical Specifications

Parameters and characteristics for this part

Part	1st Connector	Style [Min]	Style [Max]	Overall Impedance	2nd Connector Mounting Type	1st Contact Gender	Frequency - Max [Max]	Cable Type	Length	Length	1st Connector Mounting Type	2nd Connector	Color	2nd Contact Gender	Operating Temperature [Max]	Operating Temperature [Min]
MINI-CIRCUITS FL086-3KM+	2.92mm Plug	2.92 mm	2.92 mm	50 Ohms	Free Hanging (In-Line)	Male	40 GHz	0.086" Flexible Cable	3 in	76.2 mm	Free Hanging (In-Line)	2.92 mm	Blue	Male	105 ░C	-55 °C
MINI-CIRCUITS FL086-4KM+	2.92mm Plug	2.92 mm	2.92 mm	50 Ohms	Free Hanging (In-Line)	Male	40 GHz	0.086" Flexible Cable	4 in	101.6 mm	Free Hanging (In-Line)	2.92 mm	Blue	Male	105 ░C	-55 °C
MINI-CIRCUITS FL086-12KM+	2.92mm Plug	2.92 mm	2.92 mm	50 Ohms	Free Hanging (In-Line)	Male	40 GHz	0.086" Flexible Cable	12 "	304.8 mm	Free Hanging (In-Line)	2.92 mm	Blue	Male	105 ░C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial 2.92mm to 2.92mm 0.086" Flexible Cable 4.000" (101.60mm)
