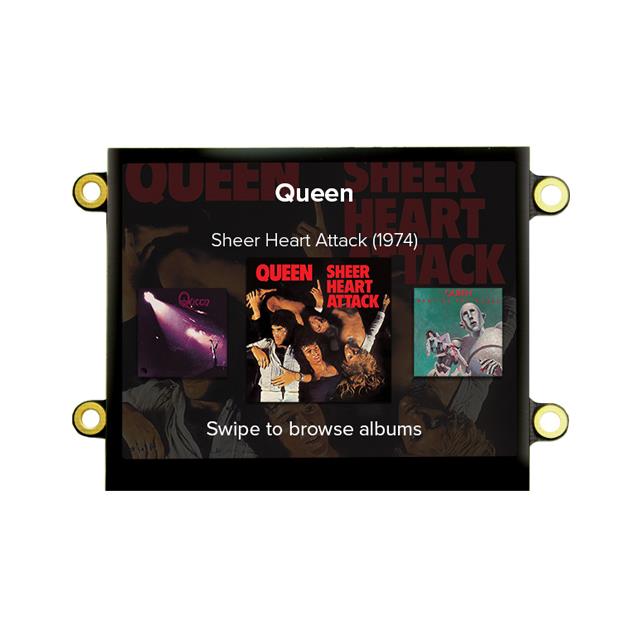

Specification	NHD-3.5-320240FT-CSXN-CTP

Backlight Color	White
Backlight Type	LED
Controller Type	FT813
Diagonal Screen Size	3.5 in
Display Mode	Transmissive
Display Type	TFT - Color
Dot Pixels (Horizontal)	320 pixels
Dot Pixels (Resolution)	QVGA
Dot Pixels (Vertical)	240 pixels
Graphics Color	Red, Green, Blue
Interface	SPI
Touchscreen	Capacitive
Viewing Area Height	53.16 mm
Viewing Area Width	70.68 mm

NHD-3.5 Series

Part	Graphics Color	Backlight Type	Backlight Color	Display Type	Touchscreen	Diagonal Screen Size	Interface Data Width	Interface	Display Mode	Dot Pixels (Vertical)	Dot Pixels (Horizontal)	Viewing Area Height	Viewing Area Width	Dot Pitch Width	Dot Pitch Height	Dot Size Height	Dot Size Width	Dot Pixels (Resolution)	Supplied Contents	Utilized IC / Part	Embedded	Type	Function	Primary Attributes	Contents	Backlight	Secondary Attributes	Controller Type
Newhaven Display Intl NHD-3.5-320240MF-ASXN#-CTP	Blue Green Red	LED	White	TFT - Color	Capacitive	3.5 in	24 Bit	Parallel	Transmissive	240 pixels	320 pixels	53.16 mm	70.68 mm
Newhaven Display Intl NHD-3.5-320240YF-ATXL#-T	Blue Green Red	LED	White	TFT - Color	Resistive	3.5 in		Parallel/Serial	Transmissive	240 pixels	320 pixels	54.6 mm	72.1 mm	0.22 mm	0.22 mm	0.21 mm	0.07 mm	QVGA
Newhaven Display Intl NHD-3.5-320240MF-22 CONTROLLER BOARD																			Board(s)	SSD1963	No	Display	LCD Controller	and Character LCD Displays COG Graphic For TFT	Board
Newhaven Display Intl NHD-3.5-320240MF-ATXL-CTPAL				TFT - Color		3.5 in																				Without Backlight
Newhaven Display Intl NHD-3.5-320240MF-VIDEO BOARD V1.1																			Board(s) Cable(s)	TW8817	No	Display	LCD Controller		Board Cable		NTSC PAL
Newhaven Display Intl NHD-3.5-320240MF-ASXN#-T	Blue Green Red	LED	White	TFT - Color	Resistive	3.5 in	24 Bit	Parallel	Transmissive	240 pixels	320 pixels	55.05 mm	71.82 mm
Newhaven Display Intl NHD-3.5-320240MF-ASXV#-CTPAL	White	LED	White	TFT - Color		3.5 in	24 Bit	Parallel	Transmissive	240 pixels	320 pixels	55.36 mm	72.8 mm					QVGA										NV3035C
Newhaven Display Intl NHD-3.5-320240MF-ESXN#				TFT - Color		3.5 in																				Without Backlight
Newhaven Display Intl NHD-3.5-320240ZF-ATXL#-T
Newhaven Display Intl NHD-3.5-320240MF-ATXL#-3				TFT - Color		3.5 in																				Without Backlight
