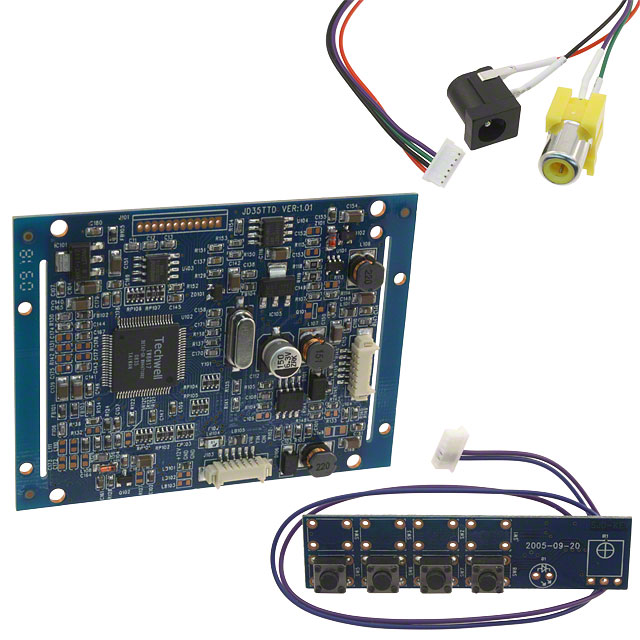

NHD-3.5-320240MF-VIDEO BOARD V1.1

Obsolete

Newhaven Display Intl

BOARD DEMO 3.5 SVIDEO 12V

NHD-3.5-320240MF-VIDEO BOARD V1.1

Obsolete

Newhaven Display Intl

BOARD DEMO 3.5 SVIDEO 12V

Description Specifications Series Pricing CAD Documents

Description

General part information

NHD-3.5 Series

TW8817 - LCD Controller Display Evaluation Board

Technical Specifications

Parameters and characteristics for this part

Specification	NHD-3.5-320240MF-VIDEO BOARD V1.1

Contents	Board, Cable
Embedded	No
Function	LCD Controller
Secondary Attributes	PAL, NTSC
Supplied Contents	Board(s), Cable(s)
Type	Display
Utilized IC / Part	TW8817

NHD-3.5 Series

Part	Graphics Color	Backlight Type	Backlight Color	Display Type	Touchscreen	Diagonal Screen Size	Interface Data Width	Interface	Display Mode	Dot Pixels (Vertical)	Dot Pixels (Horizontal)	Viewing Area Height	Viewing Area Width	Dot Pitch Width	Dot Pitch Height	Dot Size Height	Dot Size Width	Dot Pixels (Resolution)	Supplied Contents	Utilized IC / Part	Embedded	Type	Function	Primary Attributes	Contents	Backlight	Secondary Attributes	Controller Type
Newhaven Display Intl NHD-3.5-320240MF-ASXN#-CTP	Blue Green Red	LED	White	TFT - Color	Capacitive	3.5 in	24 Bit	Parallel	Transmissive	240 pixels	320 pixels	53.16 mm	70.68 mm
Newhaven Display Intl NHD-3.5-320240YF-ATXL#-T	Blue Green Red	LED	White	TFT - Color	Resistive	3.5 in		Parallel/Serial	Transmissive	240 pixels	320 pixels	54.6 mm	72.1 mm	0.22 mm	0.22 mm	0.21 mm	0.07 mm	QVGA
Newhaven Display Intl NHD-3.5-320240MF-22 CONTROLLER BOARD																			Board(s)	SSD1963	No	Display	LCD Controller	and Character LCD Displays COG Graphic For TFT	Board
Newhaven Display Intl NHD-3.5-320240MF-ATXL-CTPAL				TFT - Color		3.5 in																				Without Backlight
Newhaven Display Intl NHD-3.5-320240MF-VIDEO BOARD V1.1																			Board(s) Cable(s)	TW8817	No	Display	LCD Controller		Board Cable		NTSC PAL
Newhaven Display Intl NHD-3.5-320240MF-ASXN#-T	Blue Green Red	LED	White	TFT - Color	Resistive	3.5 in	24 Bit	Parallel	Transmissive	240 pixels	320 pixels	55.05 mm	71.82 mm
Newhaven Display Intl NHD-3.5-320240MF-ASXV#-CTPAL	White	LED	White	TFT - Color		3.5 in	24 Bit	Parallel	Transmissive	240 pixels	320 pixels	55.36 mm	72.8 mm					QVGA										NV3035C
Newhaven Display Intl NHD-3.5-320240MF-ESXN#				TFT - Color		3.5 in																				Without Backlight
Newhaven Display Intl NHD-3.5-320240ZF-ATXL#-T
Newhaven Display Intl NHD-3.5-320240MF-ATXL#-3				TFT - Color		3.5 in																				Without Backlight

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

LCD Safe Handling Procedure

NHD-3.5-320240MF-VIDEO BOARD V1.1 | Datasheet
