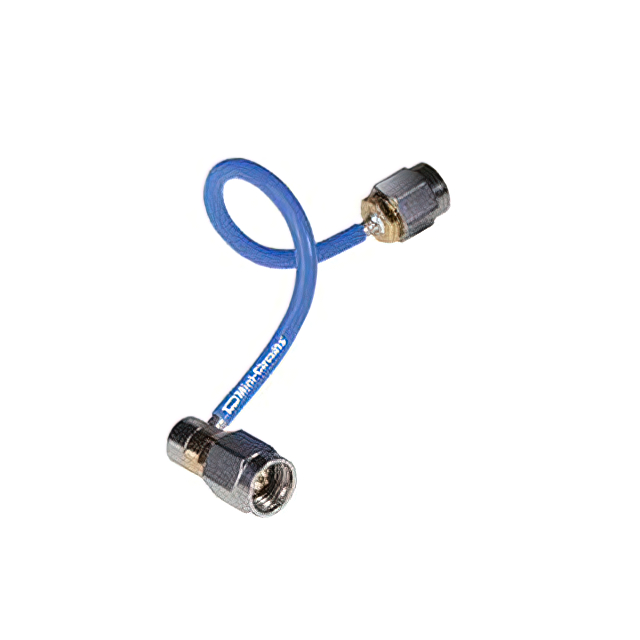

086-10SMRSM+

Active

MINI-CIRCUITS

CBL ASSY SMA PLUG TO PLUG 10"

Search across all available documentation for this part.

Active

MINI-CIRCUITS

CBL ASSY SMA PLUG TO PLUG 10"

Technical Specifications

Parameters and characteristics for this part

Part	Overall Impedance	2nd Connector	2nd Connector Mounting Type	1st Connector Mounting Type	2nd Contact Gender	1st Connector	Color	Frequency - Max [Max]	1st Contact Gender	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length	Cable Type	Cable Type	Style
MINI-CIRCUITS 086-10SMR+	50 Ohms	SMA Plug Right Angle	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	Right Angle SMA Plug	Blue	18 GHz	Male	105 ░C	-55 °C	10 in	254 mm	Hand Formable	0.086	SMA to SMA
MINI-CIRCUITS 086-10SM+	50 Ohms	SMA Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	SMA Plug	Blue	18 GHz	Male	105 ░C	-55 °C	10 in	254 mm	Hand Formable	0.086	SMA to SMA
MINI-CIRCUITS 086-10SMRSM+	50 Ohms	SMA Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	Right Angle SMA Plug	Blue	18 GHz	Male	105 ░C	-55 °C	10 in	254 mm	Hand Formable	0.086	SMA to SMA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 20.64

General part information

Cable Assembly Coaxial SMA to SMA Hand Formable .086 10.000" (254.00mm)

Technical documentation and resources
