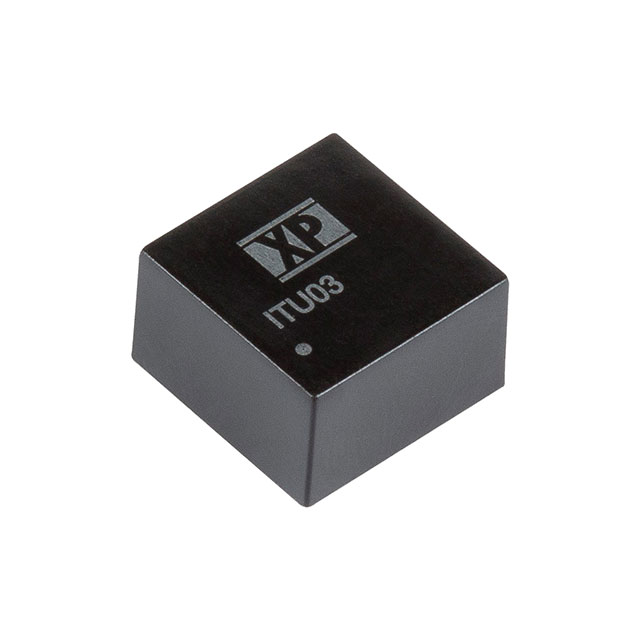

ITU0312S3V3
ActiveXP POWER
DC-DC 3W 4:1
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ITU0312S3V3
ActiveXP POWER
DC-DC 3W 4:1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ITU0312S3V3 |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Enable, Active Floating |
| Current - Output (Max) [Max] | 700 mA |
| Efficiency | 75 % |
| Features | Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 80 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5 Leads, 8-DIP Module |
| Power (Watts) | 2.3 W |
| Size / Dimension [x] | 0.55 in |
| Size / Dimension [x] | 14 mm |
| Size / Dimension [y] | 0.55 in |
| Size / Dimension [y] | 14 mm |
| Size / Dimension [z] | 0.32 " |
| Size / Dimension [z] | 8.1 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 1.6 kV |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 13.95 | |
| 5 | $ 13.53 | |||
| 10 | $ 13.11 | |||
| 25 | $ 12.56 | |||
| 100 | $ 11.72 | |||
Description
General part information
ITU0312 Series
Isolated Module DC DC Converter 1 Output 3.3V 700mA 4.5V - 18V Input
