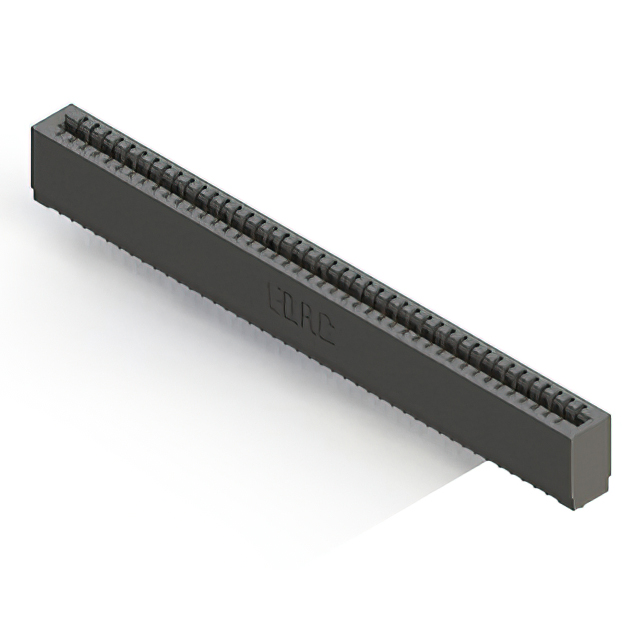

725-043-520-101

Active

EDAC Inc.

2.54MM STRAIGHT 43P -40℃~+105℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Search across all available documentation for this part.

Active

EDAC Inc.

2.54MM STRAIGHT 43P -40℃~+105℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	725-043-520-101

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	43
Number of Positions/Bay/Row [custom]	43
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Press-Fit
Termination Rows	1

Part	Termination Rows	Contact Material	Contact Type	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Rows	Color	Number of Positions/Bay/Row [custom]	Number of Positions	Read Out	Mounting Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Pitch [x]	Pitch [x]	Material - Insulation
EDAC Inc. 725-043-520-101	1	Copper Alloy	Cantilever	Female	-40 °C	105 ░C	Press-Fit	1	Black	43	43	Single	Through Hole	Gold	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	2.54 mm	0.1 in	Polyester Thermoplastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

43 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
