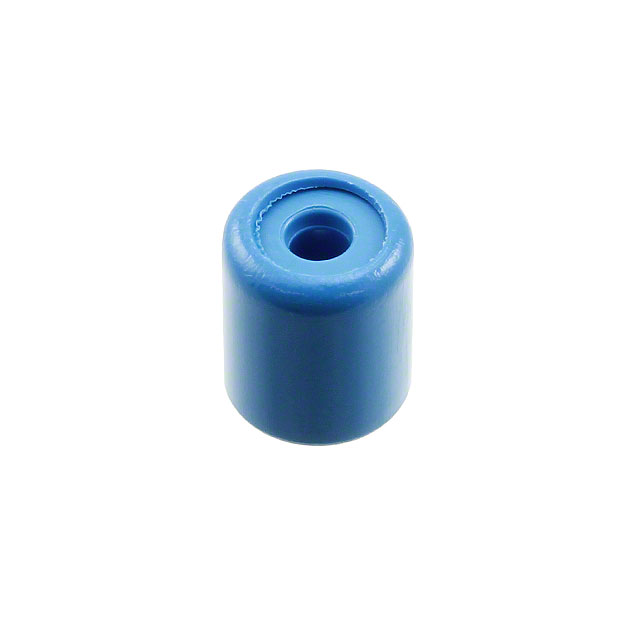

AB4X2X4.5W
ActiveToshiba Semiconductor and Storage
FERRITE CORE SOLID 1.5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AB4X2X4.5W |
|---|---|
| Inner Dimension [diameter] | 0.059 in |
| Inner Dimension [diameter] | 1.5 mm |
| Length [x] | 0.236 in |
| Length [x] | 6 mm |
| Mounting Type | Free Hanging |
| Outer Dimension [diameter] | 0.197 in |
| Outer Dimension [diameter] | 5 mm |
| Type | Round |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.85 | |
| 10 | $ 0.70 | |||
| 25 | $ 0.64 | |||
| 50 | $ 0.60 | |||
| 100 | $ 0.57 | |||
| 250 | $ 0.52 | |||
| 500 | $ 0.49 | |||
| 1000 | $ 0.46 | |||
| 4000 | $ 0.48 | |||
| 5000 | $ 0.40 | |||
| 8000 | $ 0.45 | |||
Description
General part information
AB4X2X4.5 Series
Solid Free Hanging Ferrite Core ID 0.059" Dia (1.50mm) OD 0.197" Dia (5.00mm) Length 0.236" (6.00mm)
