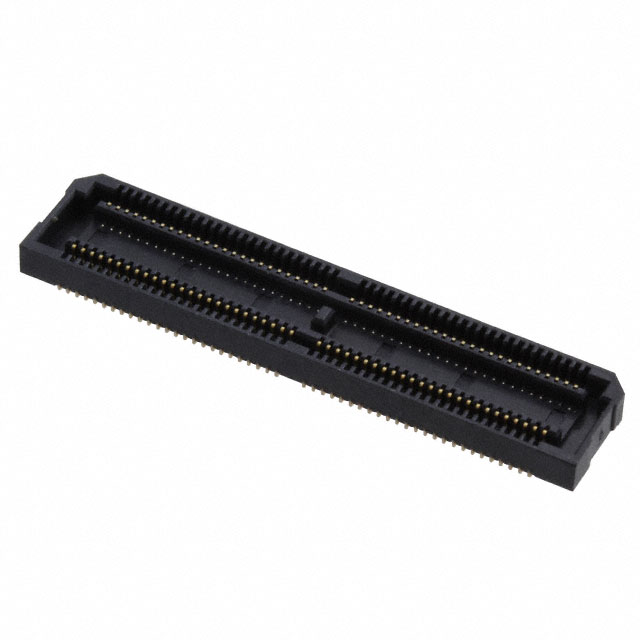

LSH-050-01-G-D-A - LSH-050-01-G-D-A

LSH-050-01-G-D-A

Active
Samtec Inc.

BOARD TO BOARD & MEZZANINE CONNECTORS 0.50 MM LOW PROFILE BLADE & BEAM SOCKET STRIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDatasheet+2
LSH-050-01-G-D-A - LSH-050-01-G-D-A

LSH-050-01-G-D-A

Active
Samtec Inc.

BOARD TO BOARD & MEZZANINE CONNECTORS 0.50 MM LOW PROFILE BLADE & BEAM SOCKET STRIP

Deep-Dive with AI

DocumentsDatasheetDatasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationLSH-050-01-G-D-A
Connector TypeReceptacle, Center Strip Contacts
Contact FinishGold
Contact Finish Thickness10 Áin
Contact Finish Thickness0.25 Ám
FeaturesBoard Guide
Height Above Board1.9 mm
Height Above Board0.075 "
Mated Stacking Heights2.31 mm
Mounting TypeSurface Mount
Number of Positions100
Number of Rows2
Pitch [x]0.5 mm
Pitch [x]0.02 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 4.43
50$ 4.06
100$ 3.81
250$ 3.43
500$ 3.22
1000$ 3.05
SagerN/A 1$ 4.43
50$ 4.06
100$ 3.81
250$ 3.43
500$ 3.22
1000$ 2.89
2500$ 2.43
5000$ 2.28

Description

General part information

LSH-050 Series

Board to Board & Mezzanine Connectors 0.50 mm Low Profile Blade & Beam Socket Strip
