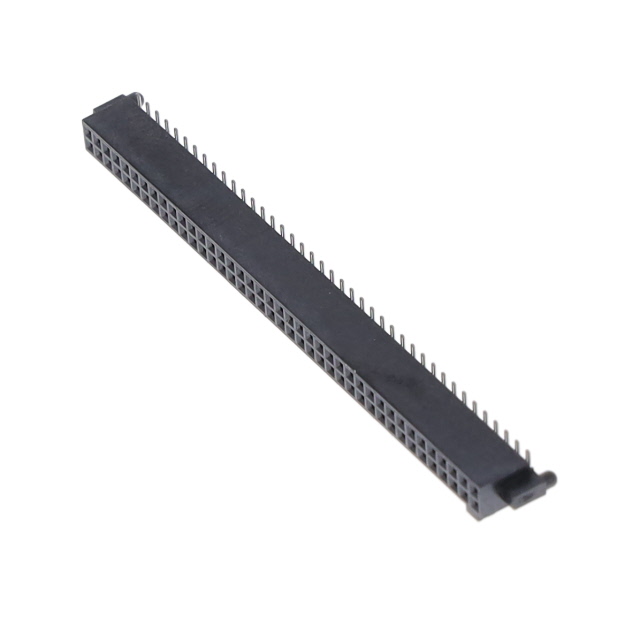

SFC-140-T2-F-D-A-K-TR

Active

Samtec Inc.

CONN RCPT 80POS 0.05 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSFSD Series Other Related Documents 03 .050" Tiger Eye™ Cost-Effective Reliable Socket Strip +2

SFC-140-T2-F-D-A-K-TR

Active

Samtec Inc.

CONN RCPT 80POS 0.05 GOLD SMD

Deep-Dive with AI

DocumentsSFSD Series Other Related Documents 03 .050" Tiger Eye™ Cost-Effective Reliable Socket Strip +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFC-140-T2-F-D-A-K-TR

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3.1 A
Fastening Type	Push-Pull
Features	Pick and Place, Board Guide
Insulation Color	Black
Insulation Height	4.57 mm
Insulation Height	0.18 "
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	80
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	350 VAC

SFC-140 Series

Headers & Wire Housings .050" Tiger Eye Cost-Effective Reliable Socket Strip

Part	Insulation Color	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Style	Features	Fastening Type	Insulation Height	Insulation Height	Termination	Contact Shape	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Insulation Material	Number of Positions	Contact Type	Number of Rows	Current Rating (Amps)	Contact Finish - Mating	Connector Type	Contact Finish - Post	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. SFC-140-T2-L-D-A-TR	Black	Surface Mount	10 çin	0.25 çm	-55 °C	125 °C	All	Board to Board Cable	Board Guide	Push-Pull	4.57 mm	0.18 "	Solder	Square	0.05 in	1.27 mm	0.05 in	1.27 mm	350 VAC	Liquid Crystal Polymer (LCP)	80	Female Socket	2	3.1 A	Gold	Receptacle	Tin	Phosphor Bronze
Samtec Inc. SFC-140-T2-LM-D-A	Black	Surface Mount	10 çin	0.25 çm	-55 °C	125 °C	All	Board to Board Cable	Board Guide	Push-Pull	4.57 mm	0.18 "	Solder	Square	0.05 in	1.27 mm	0.05 in	1.27 mm	350 VAC	Liquid Crystal Polymer (LCP)	80	Female Socket	2	3.1 A	Gold	Receptacle	Tin	Phosphor Bronze
Samtec Inc. SFC-140-T2-L-D	Black	Surface Mount	10 çin	0.25 çm	-55 °C	125 °C	All	Board to Board Cable		Push-Pull	4.57 mm	0.18 "	Solder	Square	0.05 in	1.27 mm	0.05 in	1.27 mm	350 VAC	Liquid Crystal Polymer (LCP)	80	Female Socket	2	3.1 A	Gold	Receptacle	Tin	Phosphor Bronze
Samtec Inc. SFC-140-T2-L-D-A	Black	Surface Mount	10 çin	0.25 çm	-55 °C	125 °C	All	Board to Board Cable	Board Guide	Push-Pull	4.57 mm	0.18 "	Solder	Square	0.05 in	1.27 mm	0.05 in	1.27 mm	350 VAC	Liquid Crystal Polymer (LCP)	80	Female Socket	2	3.1 A	Gold	Receptacle	Tin	Phosphor Bronze
Samtec Inc. SFC-140-T1-L-D	Black	Through Hole	10 çin	0.25 çm	-55 °C	125 °C	All	Board to Board Cable		Push-Pull	4.57 mm	0.18 "	Solder	Square	0.05 in	1.27 mm	0.05 in	1.27 mm	350 VAC	Liquid Crystal Polymer (LCP)	80	Female Socket	2	3.1 A	Gold	Receptacle	Tin	Phosphor Bronze	0.12 in	3.05 mm
Samtec Inc. SFC-140-T2-F-D-A-K-TR	Black	Surface Mount	3 µin	0.076 µm	-55 °C	125 °C	All	Board to Board Cable	Board Guide Pick and Place	Push-Pull	4.57 mm	0.18 "	Solder	Square	0.05 in	1.27 mm	0.05 in	1.27 mm	350 VAC	Liquid Crystal Polymer (LCP)	80	Female Socket	2	3.1 A	Gold	Receptacle	Tin	Phosphor Bronze
Samtec Inc. SFC-140-T1-L-D-A	Black	Through Hole	10 çin	0.25 çm	-55 °C	125 °C	All	Board to Board Cable	Board Guide	Push-Pull	4.57 mm	0.18 "	Solder	Square	0.05 in	1.27 mm	0.05 in	1.27 mm	350 VAC	Liquid Crystal Polymer (LCP)	80	Female Socket	2	3.1 A	Gold	Receptacle	Tin	Phosphor Bronze	0.12 in	3.05 mm
Samtec Inc. SFC-140-T2-LM-D-A-K-TR	Black	Surface Mount	10 çin	0.25 çm	-55 °C	125 °C	All	Board to Board Cable	Board Guide Pick and Place	Push-Pull	4.57 mm	0.18 "	Solder	Square	0.05 in	1.27 mm	0.05 in	1.27 mm	350 VAC	Liquid Crystal Polymer (LCP)	80	Female Socket	2	3.1 A	Gold	Receptacle	Tin	Phosphor Bronze

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 8.94
		10	$ 8.26
		25	$ 7.81
		50	$ 7.53
		100	$ 5.77
	Digi-Reel®	1	$ 8.94
		10	$ 8.26
		25	$ 7.81
		50	$ 7.53
		100	$ 5.77
	Tape & Reel (TR)	525	$ 5.19
		1050	$ 4.99
