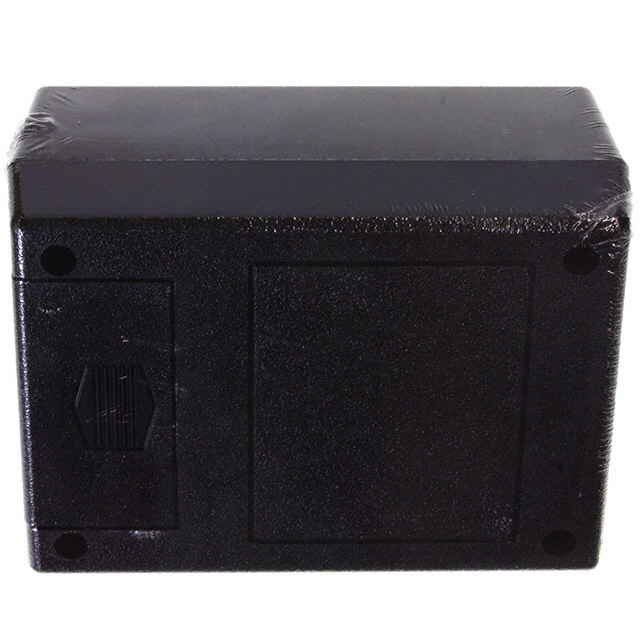

Specification	232R,BK

Area (L x W)	14.2 in²
Color	Black
Container Type	Box
Design	Split Sides, Hand Held
Features	Front Access, Battery Compartment, 9V, PCB Supports
Height	2 in
Material	ABS, Plastic
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension Length	4.38 in
Size / Dimension Width	3.25 in
Thickness	0.1 in
Weight	0.24 lb

232R Series

Part	Weight	Material Flammability Rating	Container Type	Color	Ratings	Thickness	Material	Height	Design	Features	Size / Dimension Width	Size / Dimension Length	Area (L x W)
Serpac 232R,AL	0.24 lb	UL94 HB	Box	Almond	IP40 NEMA 1	0.1 in	ABS Plastic	2 in	Hand Held Split Sides	9V Battery Compartment Front Access PCB Supports	3.25 in	4.38 in	14.2 in²
Serpac 232RI,GY	0.24 lb	UL94 HB	Box	Gray	IP40 NEMA 1	0.1 in	ABS Plastic	2 in	Hand Held Split Sides	9V Battery Compartment Front Access PCB Supports	3.25 in	4.38 in	14.2 in²
Serpac 232R,GY	0.24 lb	UL94 HB	Box	Gray	IP40 NEMA 1	0.1 in	ABS Plastic	2 in	Hand Held Split Sides	9V Battery Compartment Front Access PCB Supports	3.25 in	4.38 in	14.2 in²
Serpac 232RI,AL	0.24 lb	UL94 HB	Box	Almond	IP40 NEMA 1	0.1 in	ABS Plastic	2 in	Hand Held Split Sides	9V Battery Compartment Front Access PCB Supports	3.25 in	4.38 in	14.2 in²
Serpac 232RC,GY	0.24 lb		Box	Clear Cover/Door Gray	IP40 NEMA 1	0.1 in	Plastic Polycarbonate Polycarbonate (PC)	2 in	Hand Held Split Sides	9V Battery Compartment Front Access PCB Supports	3.25 in	4.38 in	14.2 in²
Serpac 232RI,BK	0.24 lb	UL94 HB	Box	Black	IP40 NEMA 1	0.1 in	ABS Plastic	2 in	Hand Held Split Sides	9V Battery Compartment Front Access PCB Supports	3.25 in	4.38 in	14.2 in²
Serpac 232RC,AL	0.24 lb		Box	Almond Clear Cover/Door	IP40 NEMA 1	0.1 in	Plastic Polycarbonate Polycarbonate (PC)	2 in	Hand Held Split Sides	9V Battery Compartment Front Access PCB Supports	3.25 in	4.38 in	14.2 in²
Serpac 232RC,BK	0.24 lb		Box	Black Clear Cover/Door	IP40 NEMA 1	0.1 in	Plastic Polycarbonate Polycarbonate (PC)	2 in	Hand Held Split Sides	9V Battery Compartment Front Access PCB Supports	3.25 in	4.38 in	14.2 in²
Serpac 232R,BK	0.24 lb	UL94 HB	Box	Black	IP40 NEMA 1	0.1 in	ABS Plastic	2 in	Hand Held Split Sides	9V Battery Compartment Front Access PCB Supports	3.25 in	4.38 in	14.2 in²
