1233/2 SV005

Active

ALPHA WIRE

SLEEVING, FLAT WIRE, BRAIDED, COPPER, TIN PLATED, SILVER, 30.5 M, 100 FT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN FIT Wire Management Catalog +1

1233/2 SV005

Active

ALPHA WIRE

SLEEVING, FLAT WIRE, BRAIDED, COPPER, TIN PLATED, SILVER, 30.5 M, 100 FT

Deep-Dive with AI

DocumentsTechnical Data Sheet EN FIT Wire Management Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1233/2 SV005	1233/2 Series

Length	-	152.4 - 304.8 m
Length	-	1000 - 6000 in
Length [x]	100 ft	100 ft
Length [x]	30.48 m	30.48 m
Material	Copper, Tinned	Copper, Tinned
Number of Carriers	48	48
Size, Supplied	12.7 mm	12.7 mm
Size, Supplied	0.5 in	0.5 in
Size, Supplied [x]	0.5 in	0.5 in
Thickness	0.03 in	0.03 in
Thickness	0.76 mm	0.76 mm
Type	Flat	Flat
Wire Gauge - Ends	36 AWG	36 AWG

1233/2 Series

GROUND BRAID FLAT 0.5" X 500'

Part	Number of Carriers	Type	Wire Gauge - Ends	Length	Length	Size, Supplied	Size, Supplied [x]	Size, Supplied	Material	Thickness	Thickness	Length [x]	Length [x]
ALPHA WIRE 1233/2 SV002	48	Flat	36 AWG	152.4 m	6000 in	12.7 mm	0.5 in	0.5 in	Copper, Tinned	0.03 in	0.76 mm
ALPHA WIRE 1233/2 SV005	48	Flat	36 AWG			12.7 mm	0.5 in	0.5 in	Copper, Tinned	0.03 in	0.76 mm	100 ft	30.48 m
ALPHA WIRE 1233/2 SV001	48	Flat	36 AWG	304.8 m	1000 ft	12.7 mm	0.5 in	0.5 in	Copper, Tinned	0.03 in	0.76 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 775.64
		2	$ 713.38
		3	$ 679.32
		5	$ 638.71
		7	$ 613.30
		10	$ 589.65
		25	$ 541.11
Newark	Spool of 100	1	$ 748.30

Description

General part information

1233/2 Series

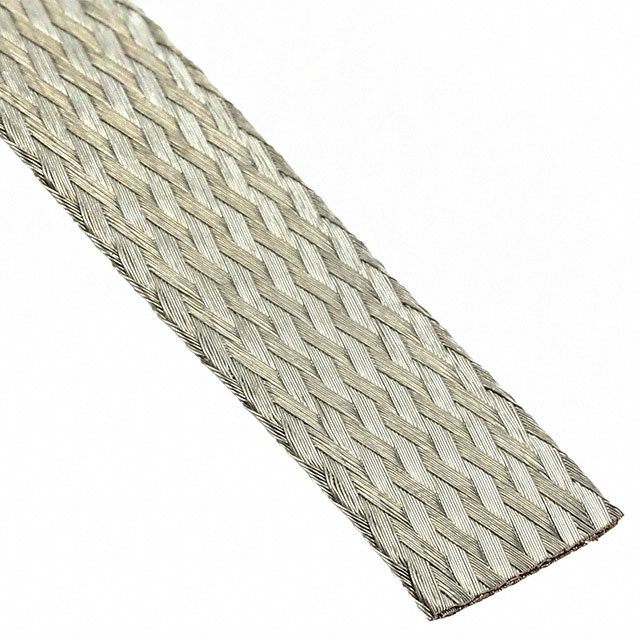

The 1233/2 SV005 is a 100ft Flat Wire Braid Sleeve made of tinned copper with solid stranding. It is an exceptional low resistance way to create a point-to-point ground strap. It provides excellent EMI protection and generous expansion for flexibility during installation. It is ideal for medical, food + beverage and semiconductor applications because it continuously reduces bacterial contamination, achieving 99.9% reduction within two hours of exposure.
