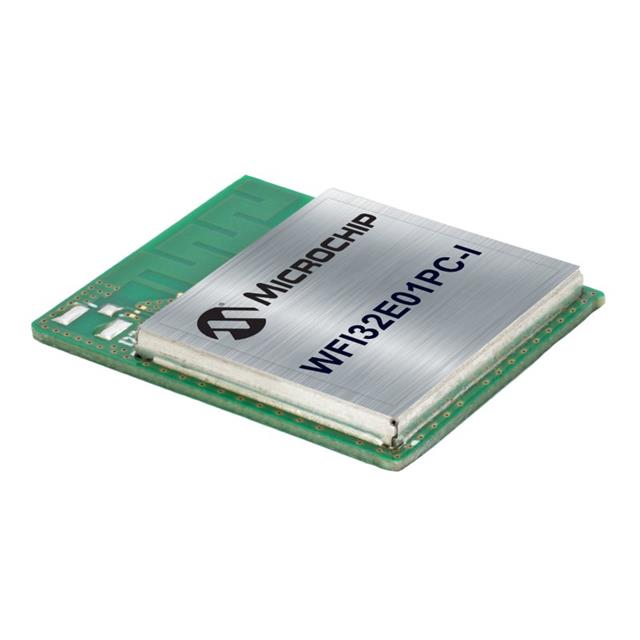

WFI32E01PC-I
ActiveGLOBAL REGULATORY CERTIFIED, RF READY, COMPACT WI-FI® MCU MODULE WITH PCB ANTENNA AND TRUST&GO SECURITY
Deep-Dive with AI
Search across all available documentation for this part.
WFI32E01PC-I
ActiveGLOBAL REGULATORY CERTIFIED, RF READY, COMPACT WI-FI® MCU MODULE WITH PCB ANTENNA AND TRUST&GO SECURITY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WFI32E01PC-I |
|---|---|
| Antenna Type | PCB Trace |
| Current - Receiving | 216 mA |
| Current - Transmitting [Max] | 414 mA |
| Current - Transmitting [Min] | 340 mA |
| Data Rate | 54 Mbps |
| Frequency | 2.4 GHz |
| Memory Size | 1 MB, 256 kB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 54-SMD Module |
| Power - Output | 20.5 dBm |
| Protocol | 802.11b/g/n |
| RF Family/Standard | WiFi |
| Sensitivity | -99 dBm |
| Serial Interfaces | USB, I2C, UART, JTAG, SPI |
| Utilized IC / Part | WFI32E01 |
| Voltage - Supply [Max] | 3.63 V |
| Voltage - Supply [Min] | 2.97 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Microchip Direct | TRAY | 1 | $ 9.70 | |
| 100 | $ 9.10 | |||
| 1000 | $ 8.34 | |||
| 5000 | $ 7.96 | |||
WFI32E01PC Series
Global Regulatory Certified, RF Ready, Compact Wi-Fi® MCU Module With PCB Antenna and Trust&GO Security
| Part | Mounting Type | Current - Receiving | Protocol | RF Family/Standard | Memory Size | Antenna Type | Current - Transmitting [Min] | Current - Transmitting [Max] | Package / Case | Data Rate | Frequency | Sensitivity | Power - Output | Utilized IC / Part | Voltage - Supply [Min] | Voltage - Supply [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Serial Interfaces |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology WFI32E01PC-I | Surface Mount | 216 mA | 802.11b/g/n | WiFi | 1 MB, 256 kB | PCB Trace | 340 mA | 414 mA | 54-SMD Module | 54 Mbps | 2.4 GHz | -99 dBm | 20.5 dBm | WFI32E01 | 2.97 V | 3.63 V | 85 °C | -40 °C | I2C, JTAG, SPI, UART, USB |
Description
General part information
WFI32E01PC Series
WFI32E01PC is a standalone and fully certified Wi-Fi module supporting 2.4 GHz 802.11 b/g/n radio modes. Specially designed for industrial IoT applications, WFI32E01PC contains the PIC32MZW1 series Wi-Fi SoC, which is a 200MHz high performance MCU with industrial leading Wi-Fi connectivity and rich peripheral options. PIC32MZW1 has 1MB embedded flash and 256KB SRAM, empowering embedded designers to rapidly build complex IoT software covering WLAN, TCP/IP stack, RTOS, Cloud connectivity, and application. Various types of peripherals, such as Ethernet, USB, ADC, CVD touch buttons, and CAN, make PIC32MZW1 a perfect system core to realize the most application features.
WFI32E01PC has best-in-class WLAN functions covering the latest Wi-Fi security standard, Wi-Fi Protected Access 3 (WPA3) and all the general Wi-Fi functions like AP, STA, SoftAP with 8 connected STAs, TLS, etc.
The software development of WFI32E01 module is supported in [Microchip MPLAB](https://www.microchip.com/en-us/tools-resources/develop/mplab-x-ide) and [Microchip Harmony v3](https://www.microchip.com/en-us/tools-resources/configure/mplab-harmony).
