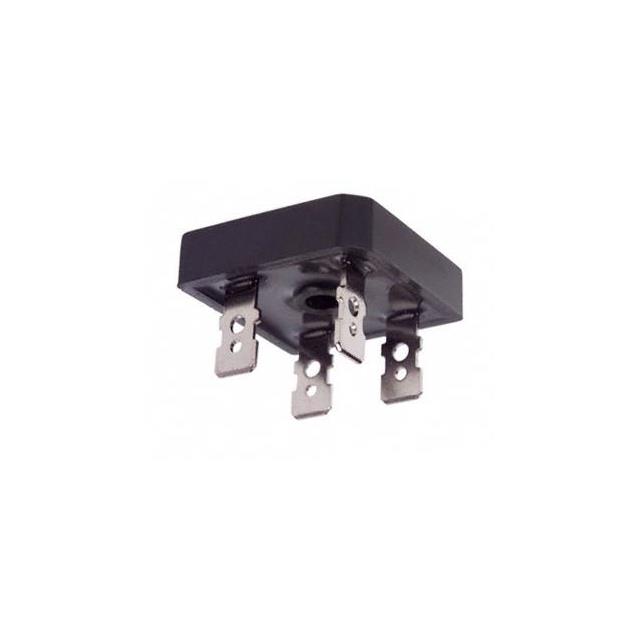

GBPC2504
ActiveSMC Diode Solutions
BRIDGE RECT 1PHASE 400V 25A GBPC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GBPC2504
ActiveSMC Diode Solutions
BRIDGE RECT 1PHASE 400V 25A GBPC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GBPC2504 |
|---|---|
| Current - Average Rectified (Io) | 25 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Diode Type | Single Phase |
| Mounting Type | QC Terminal |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 4-Square, GBPC |
| Supplier Device Package | GBPC |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V |
| Voltage - Peak Reverse (Max) [Max] | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2.66 | |
| Bulk | 1 | $ 6.74 | ||
| 10 | $ 4.54 | |||
| 100 | $ 3.29 | |||
| 500 | $ 2.76 | |||
| 1000 | $ 2.71 | |||
| Tape & Box (TB) | 100 | $ 2.52 | ||
| 300 | $ 2.38 | |||
| 500 | $ 2.24 | |||
| 1000 | $ 1.91 | |||
| 2500 | $ 1.80 | |||
| 5000 | $ 1.73 | |||
Description
General part information
GBPC2504 Series
Bridge Rectifier Single Phase Standard 400 V QC Terminal GBPC
Documents
Technical documentation and resources
